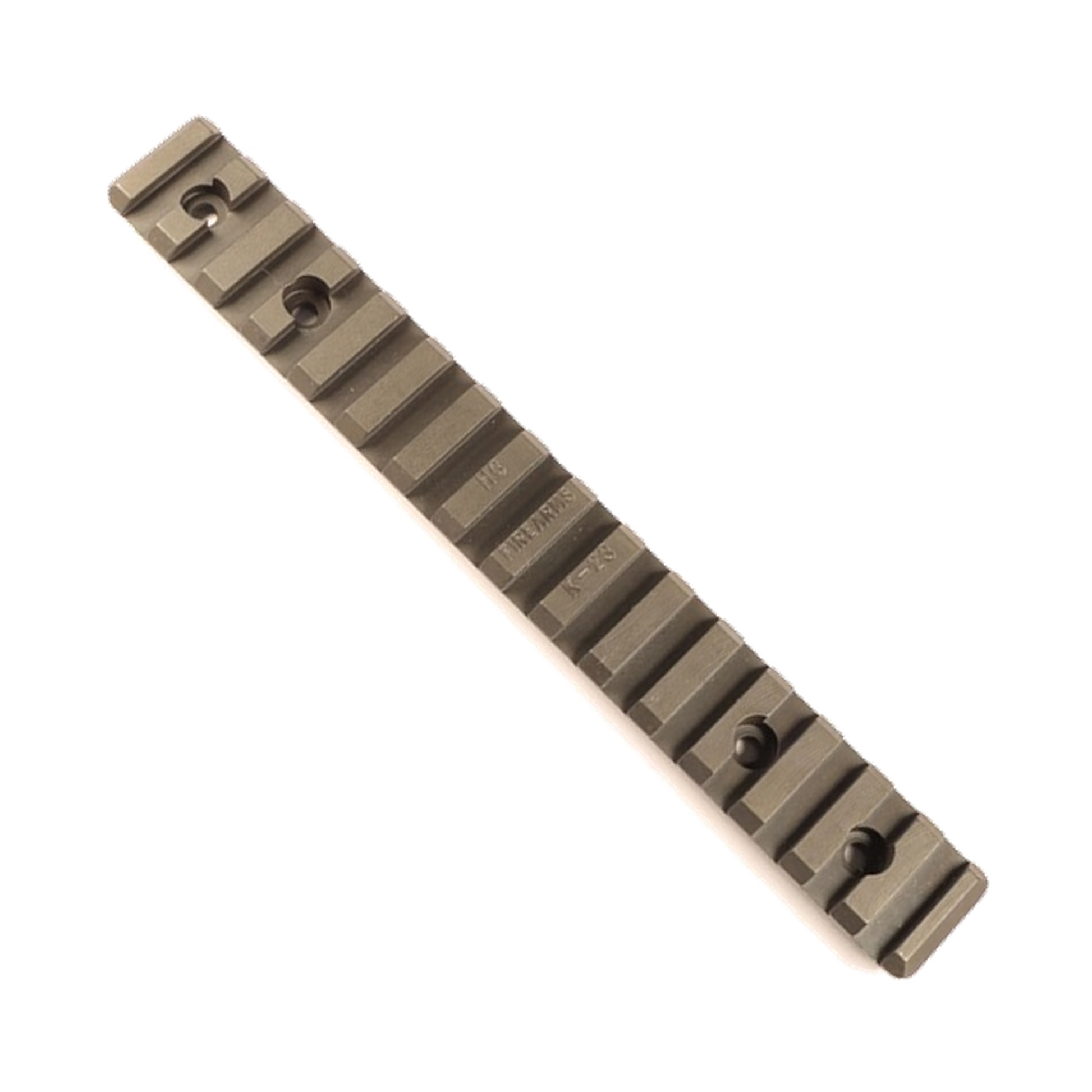

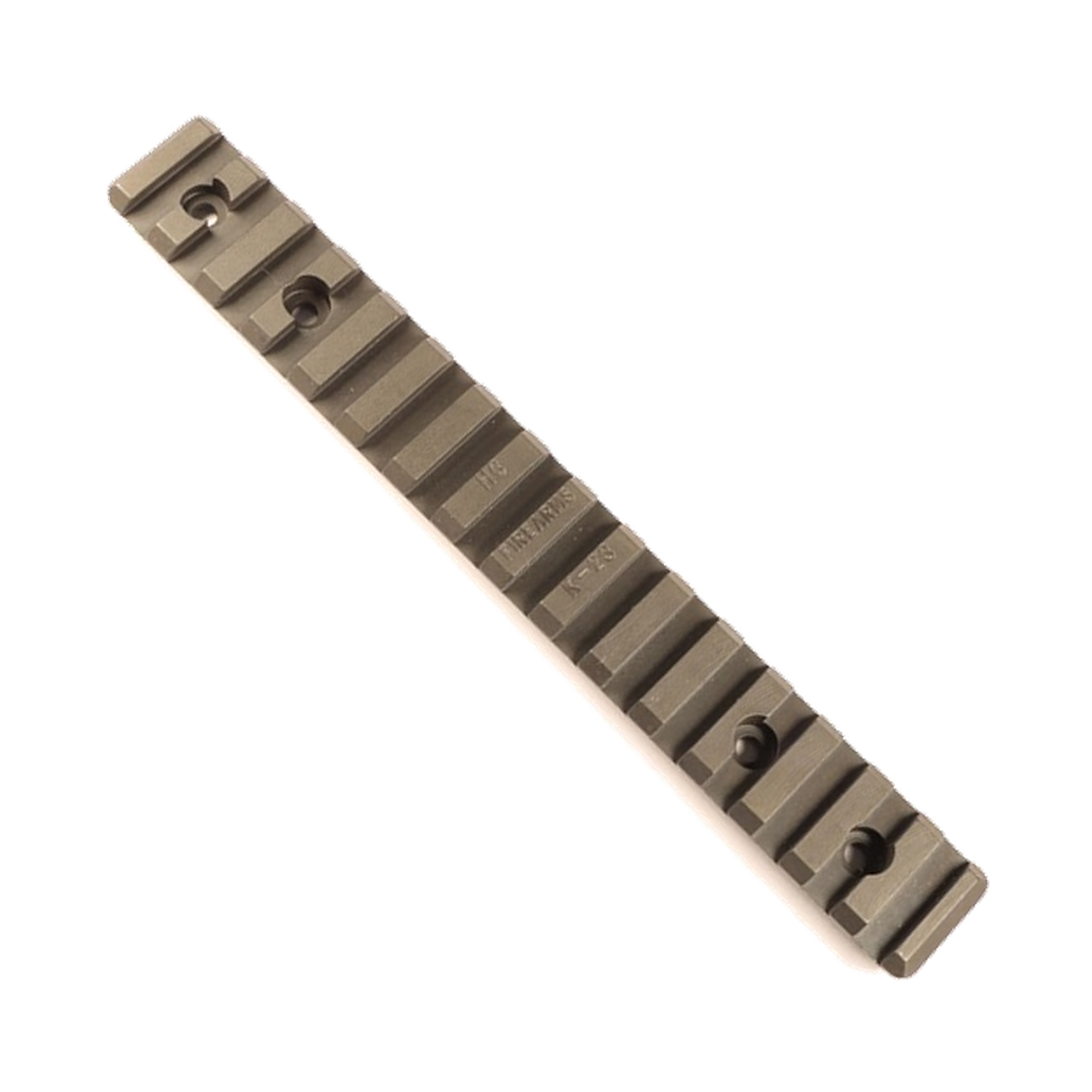

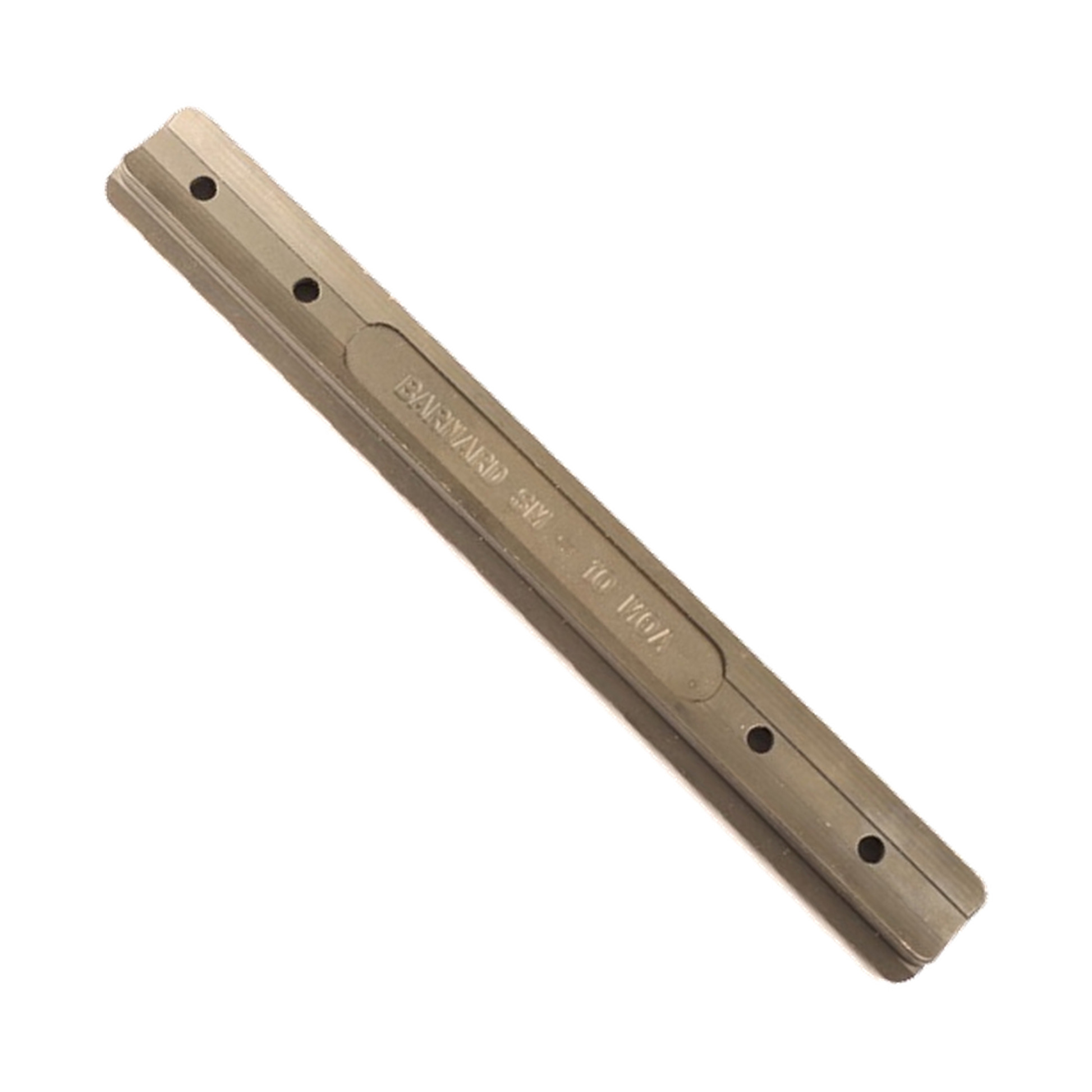

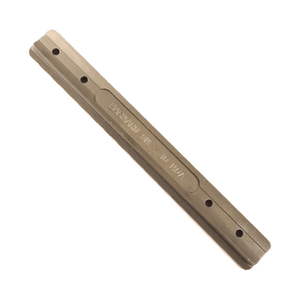

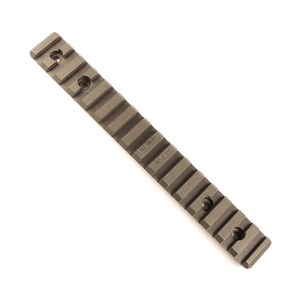

Barnard SM Standard Picatinny Rail
Barnard SM Standard Picatinny Rail
Couldn't load pickup availability
Note: The Barnard SM Standard is a precision action where the hole pattern and receiver geometry must be carefully checked. Use the A/B/C measurements before ordering.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this picatinny rail. Read more | HG Firearms |
| Material The material affects weight, wear resistance, and application. Read more | Steel |
| Surface Treatment QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the rail's incline and can provide more elevation adjustment in the scope. Read more | 0 MOA, 10 MOA, 20 MOA |
| Screws | M4x8 ALLEN screws, included |
| A/B/C Measurements A/B/C measurements are used to check hole spacing and fit before purchase. Read more | 22.00 / 92.43 / 22.00 mm |
| Length | 155 mm |
Which MOA should you choose?
This rail can be chosen with several MOA inclines. Choose 0 MOA for neutral mounting, or choose an incline if optics and shooting distance require extra adjustment range.
Mounting
Ensure that holes, screw threads, and contact surfaces are clean before mounting. Place the steel rail so that the holes align with the receiver, and tighten the screws evenly according to the manufacturer's recommendation. Only use a small amount of suitable blue thread locker if you choose to secure the screws.
See guide for mounting Picatinny rail
This package includes
1 pc. Picatinny rail and M4x8 ALLEN screws, included.
