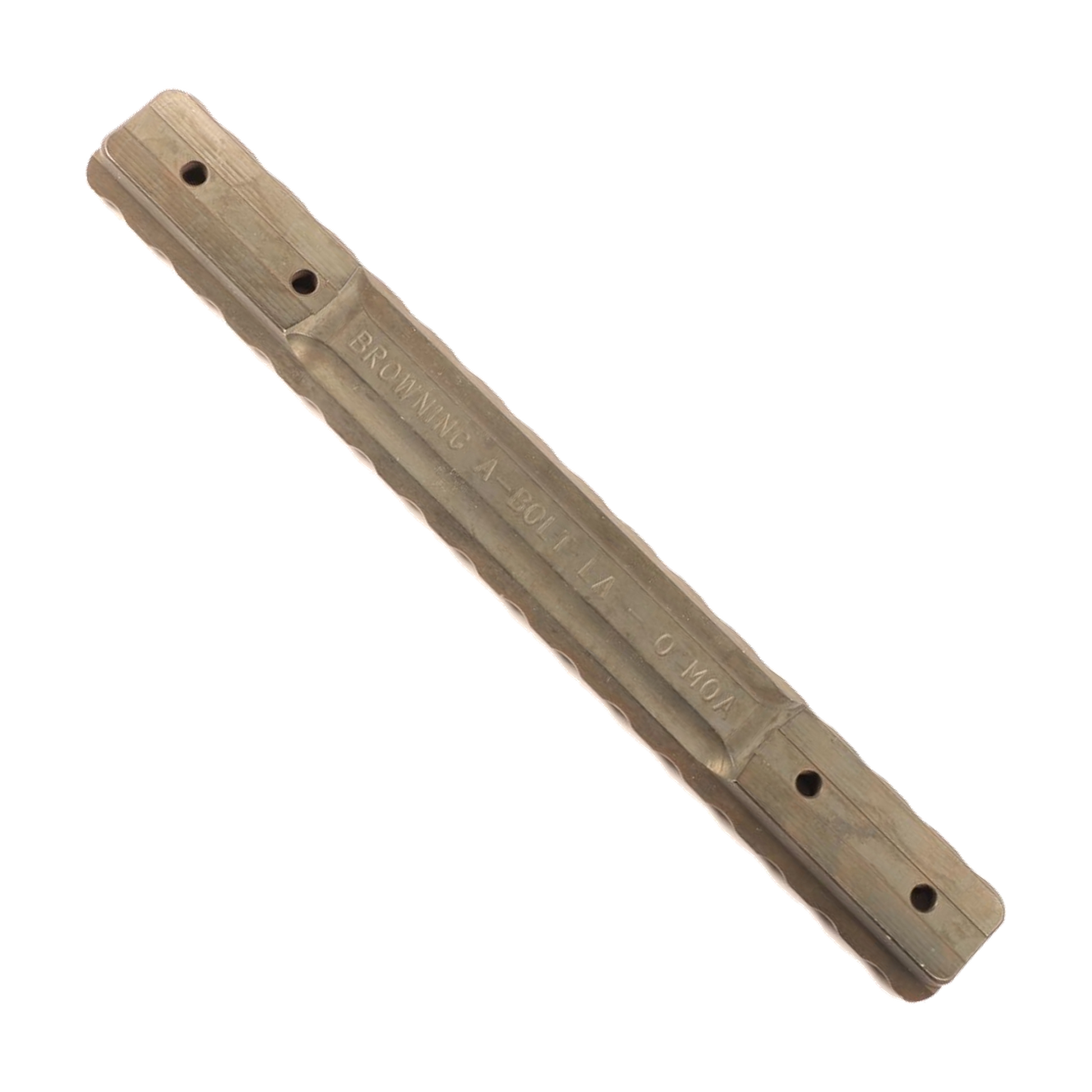

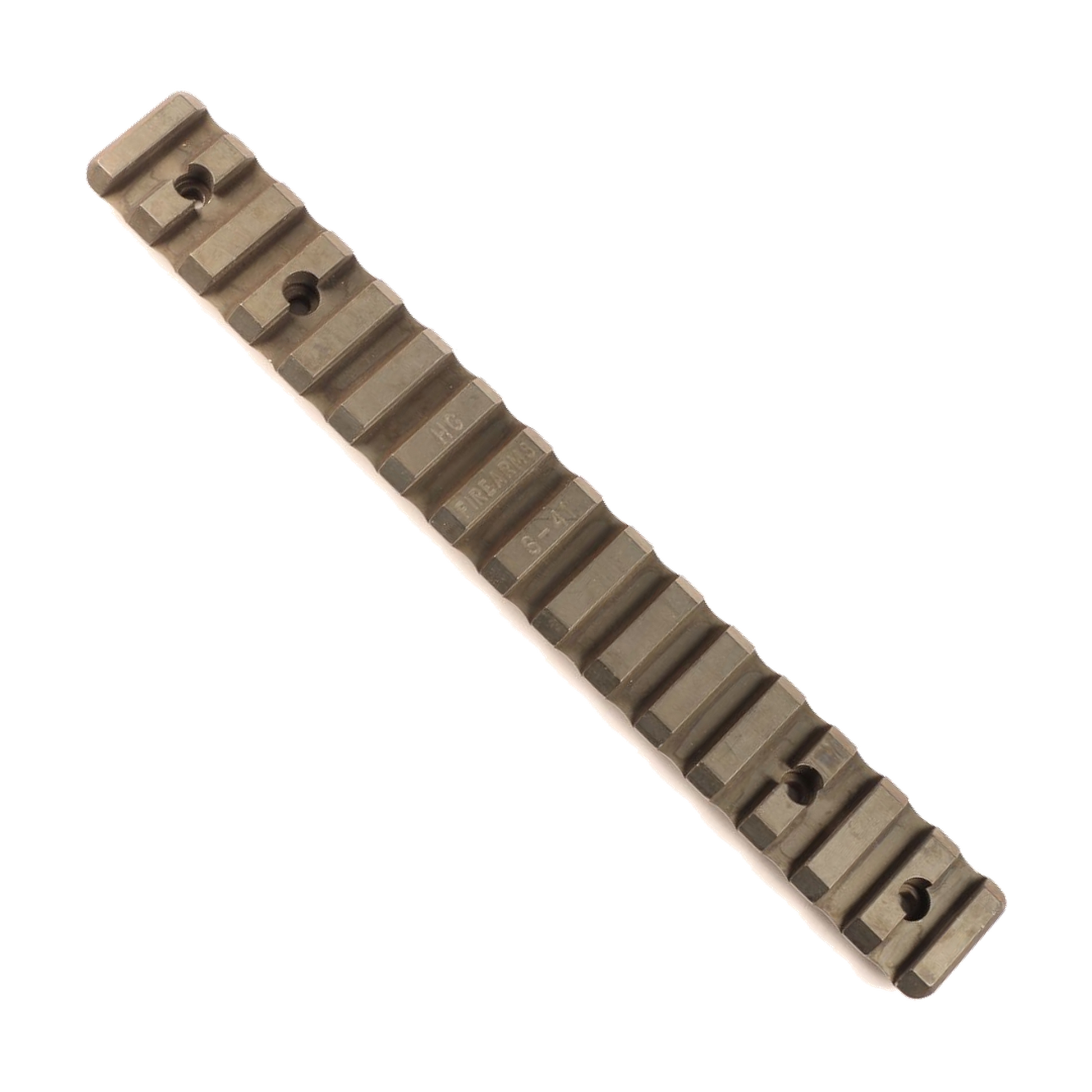

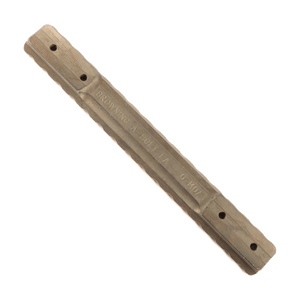

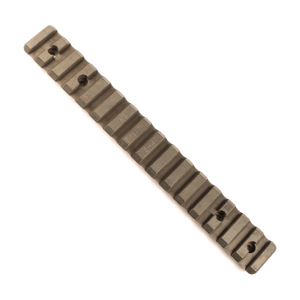

Browning A-Bolt 1+2 Long Action Picatinny Rail
Browning A-Bolt 1+2 Long Action Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Browning A-Bolt 1+2 Long Action
The rail fits both right and left-handed rifles.
Does not fit the new version with 8-40 screws.
Note: Installation requires gunsmithing.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this Picatinny rail. Read more | HG Firearms |
| Material The material affects weight, durability, and application. Read more | Steel |
| Surface QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the rail's incline and can provide more elevation adjustment in the scope. Read more | 0, 10, and 20 MOA |
| Screws | 6-48 Leupold TORX |
| Length | 165 mm |
Which MOA should you choose?
Choose 0 MOA for a neutral mounting. Choose 10 or 20 MOA if you need more available elevation adjustment in the scope for shooting at longer distances, and the scope's adjustment range allows for it.
Mounting
Ensure that the holes in the receiver, screw threads, and mating surfaces are clean before mounting. Position the Picatinny rail so that the holes align with the holes in the receiver, and tighten the screws according to the manufacturer's recommendation. Optionally, use a small amount of suitable threadlocker, and remove excess oil or threadlocker before use.
See guide for mounting Picatinny rail
What's included in the package
1 pc. Picatinny rail and 6-48 Leupold TORX screws.
