HG Firearms

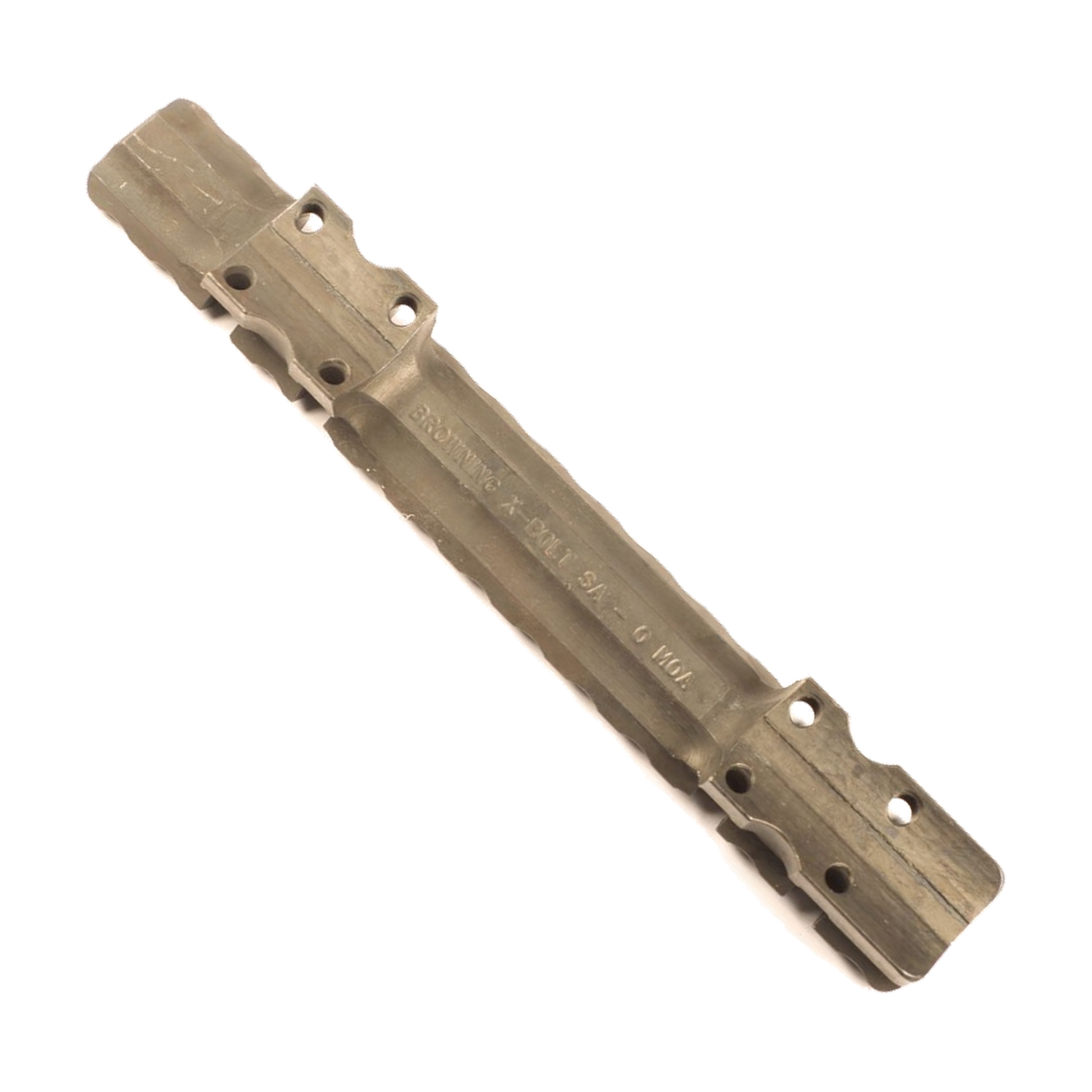

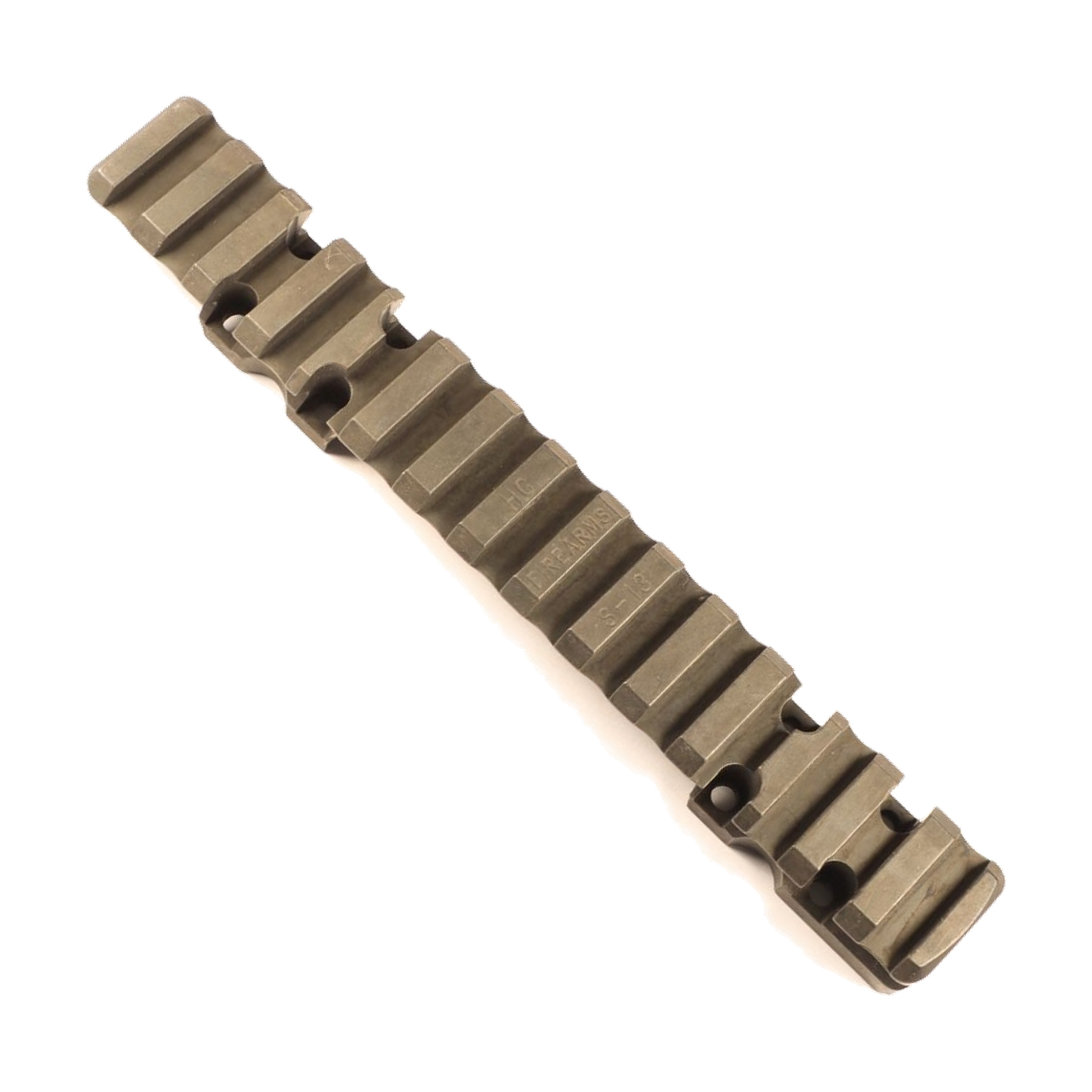

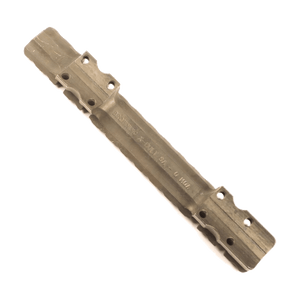

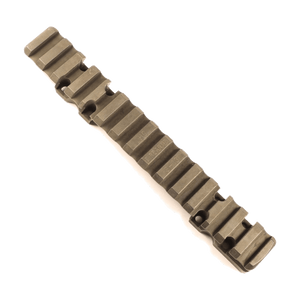

Browning X-Bolt Short Action Picatinny Rail
Browning X-Bolt Short Action Picatinny Rail
Regular price
1.095,00 DKK
Regular price
Sale price
1.095,00 DKK
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Specifications:
| Manufacturer HG Firearms is the manufacturer of this picatinny rail. Read more | HG Firearms |
| Material The material affects weight, wear resistance, and application. Read more | Steel |
| Surface treatment QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ-treated |
| MOA MOA indicates the rail's incline and can provide more elevation adjustment in the scope. Read more | 0, 10, and 20 MOA |
| Screws | 6-48 Leupold TORX, included |
| A/B/C dimensions A/B/C dimensions are used to check hole spacing and fit before purchase. Read more | 17.80 / 74.70 / 17.80 mm |
| Length | 143 mm |
Which MOA should you choose?
Choose 0 MOA for a neutral mounting. Choose 10 or 20 MOA if you need more elevation adjustment in the scope.
Mounting
Ensure that the holes in the receiver, screw threads, and contact surfaces are clean before mounting. Position the Picatinny rail so that the holes align with the holes in the receiver, and tighten the screws according to the manufacturer's recommendations. Optionally, use a small amount of suitable threadlocker and remove excess oil or threadlocker before use.
See guide for mounting Picatinny rail
Included in the package
1 pc. Picatinny rail and 6-48 Leupold TORX screws.
