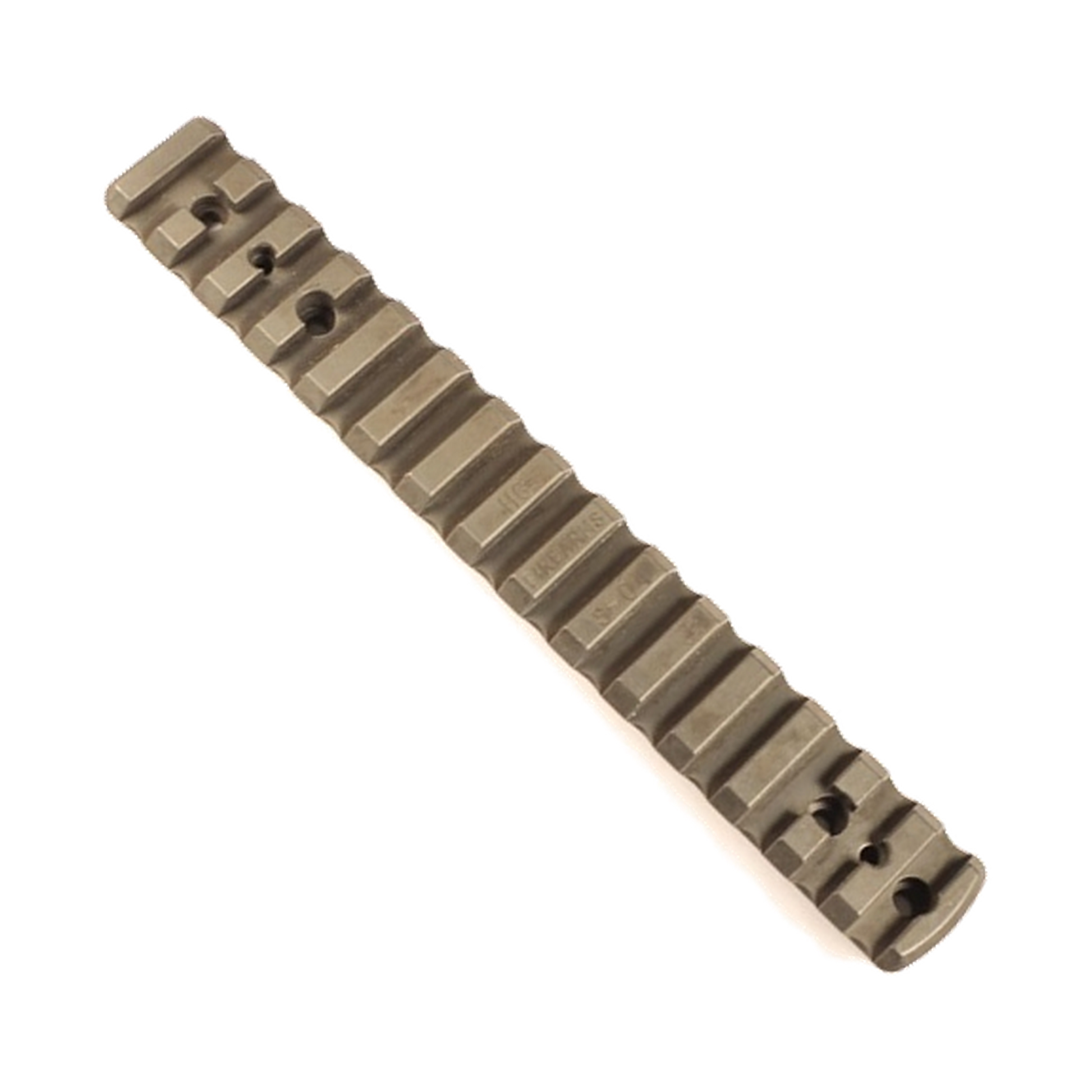

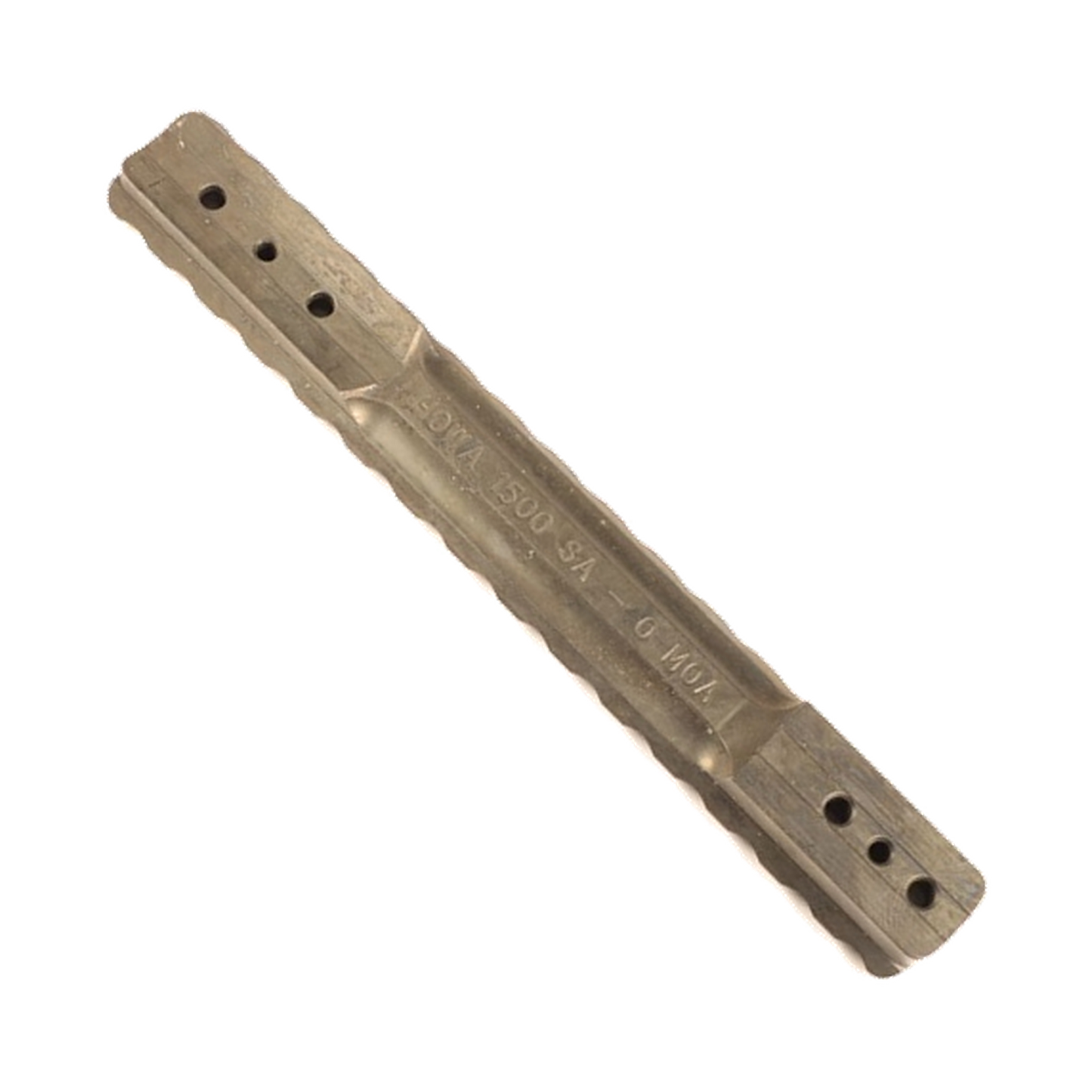

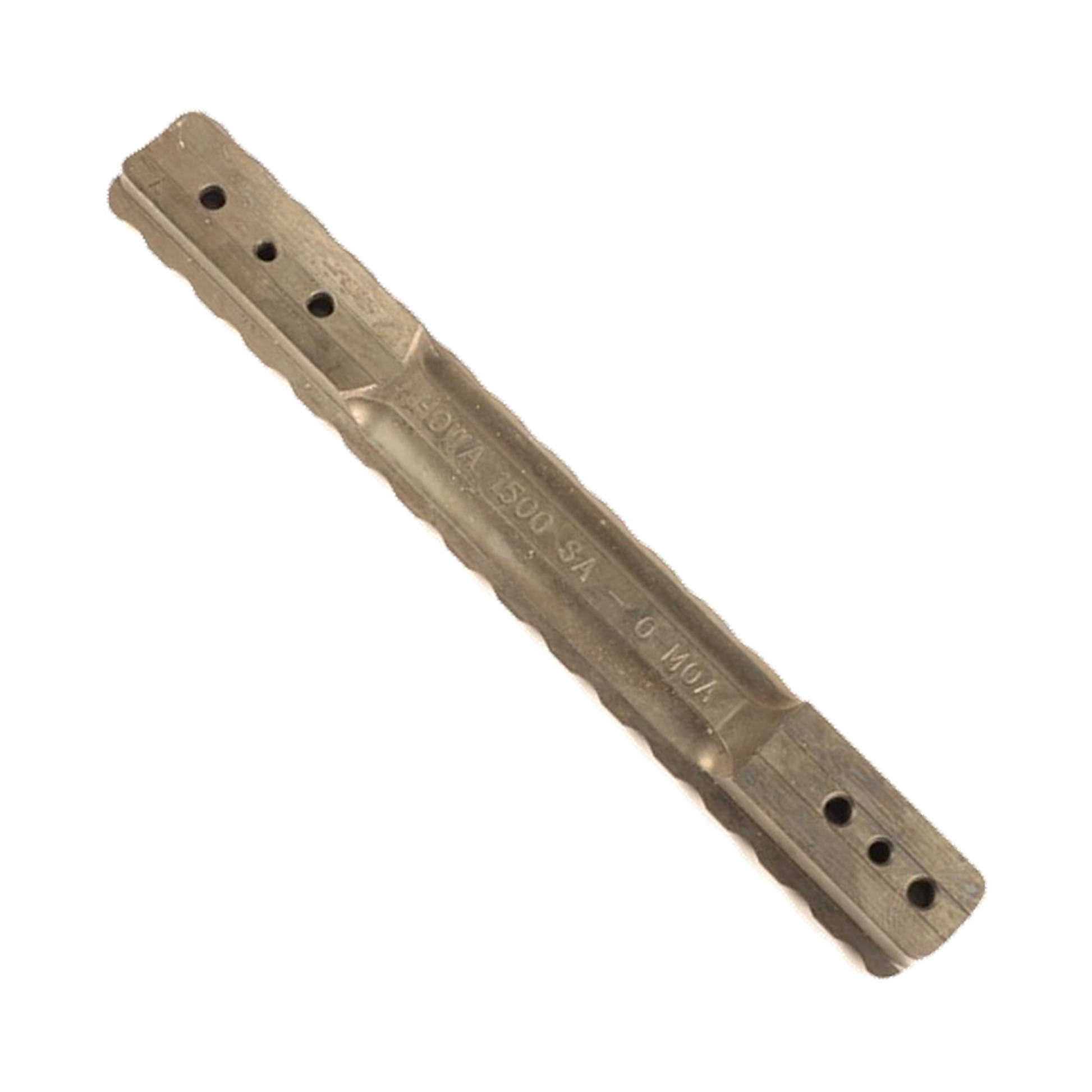

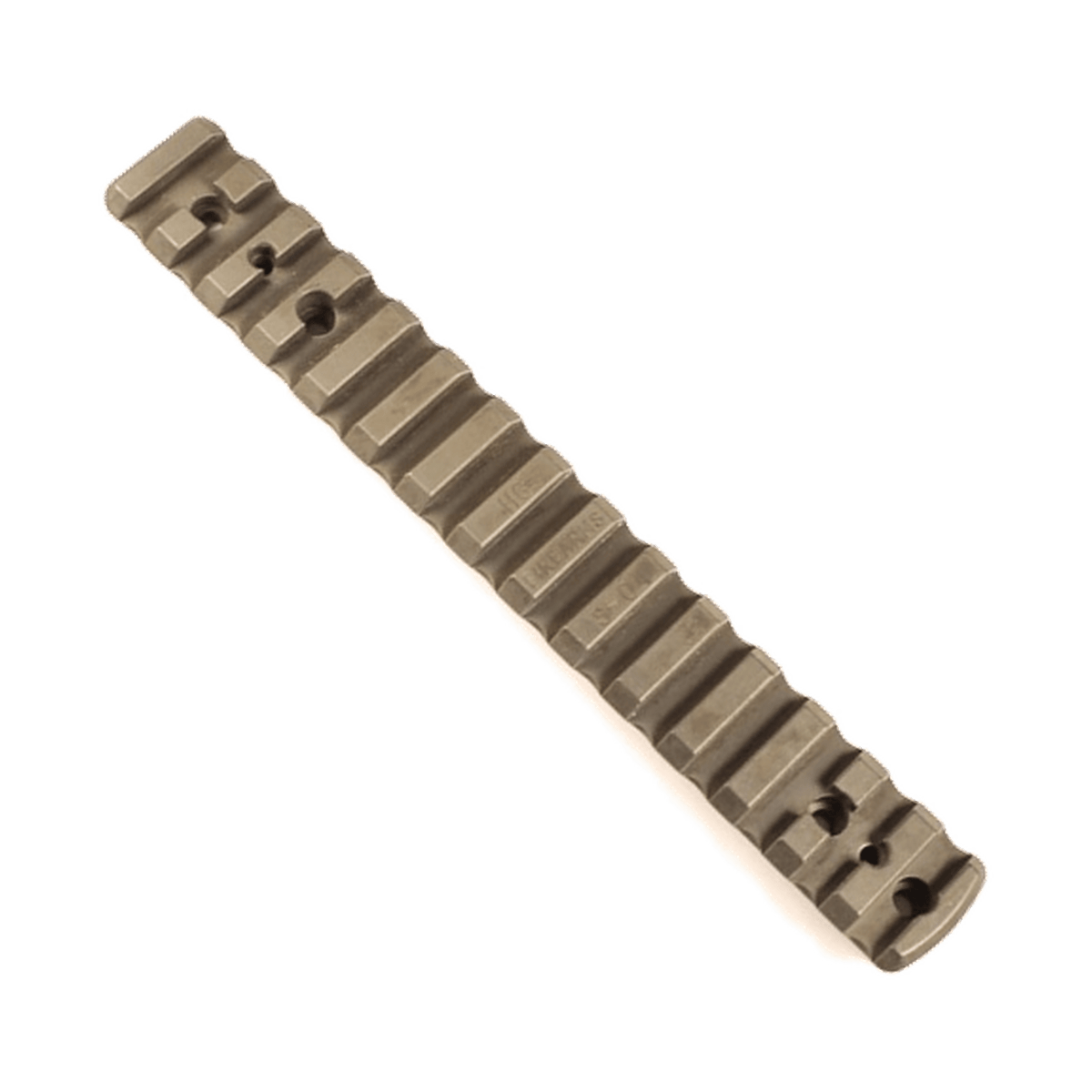

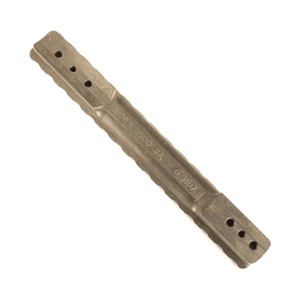

Howa 1500 Short Action Picatinny Rail
Howa 1500 Short Action Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Howa 1500 Short Action
Weatherby Vanguard
Note: The Howa 1500 is available in several action lengths. This rail fits the Short Action; do not choose based on caliber alone.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this Picatinny rail. Read more | HG Firearms |
| Material The material affects weight, durability, and application. Read more | Steel |
| Surface Treatment QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the rail's incline and can provide more elevation adjustment in the scope. Read more | 0 MOA, 10 MOA, 20 MOA |
| Screws | 6-48 Leupold TORX screws, included |
| A/B/C measurements A/B/C measurements are used to check hole spacing and fit before purchase. Read more | 21.85 / 98.56 / 21.85 mm |
| Length | 155 mm |
Which MOA should you choose?
This rail can be chosen with several MOA inclines. Choose 0 MOA for neutral mounting, or choose an incline if optics and shooting distance require additional adjustment range.
Mounting
Ensure that holes, screw threads, and contact surfaces are clean before mounting. Position the rail so that the holes align with the receiver, and tighten the screws evenly according to the manufacturer's recommendation. Use only a small amount of suitable blue thread locker if you choose to secure the screws.
See guide for mounting a Picatinny rail
This package includes
1 pc. Picatinny rail and 6-48 Leupold TORX screws.
