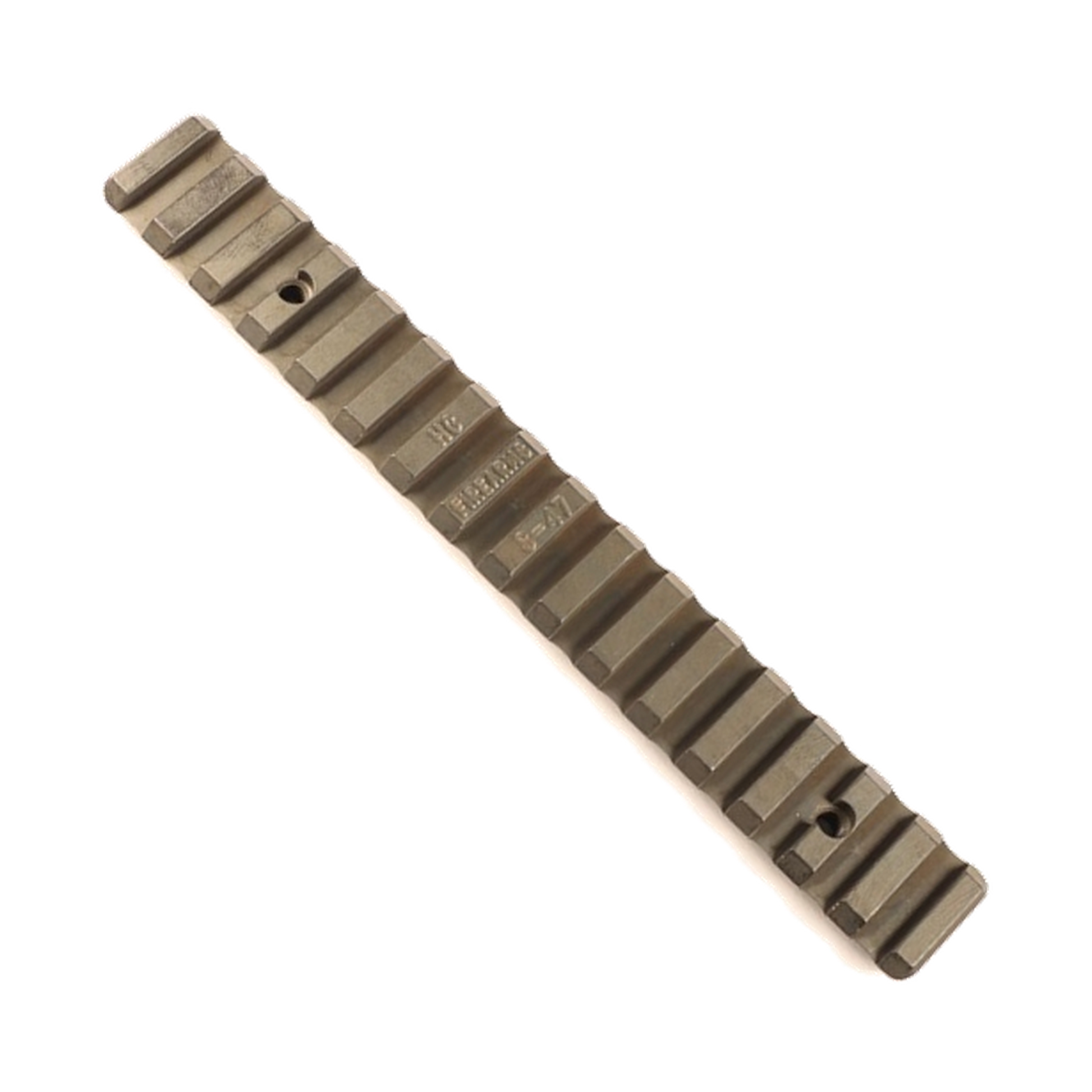

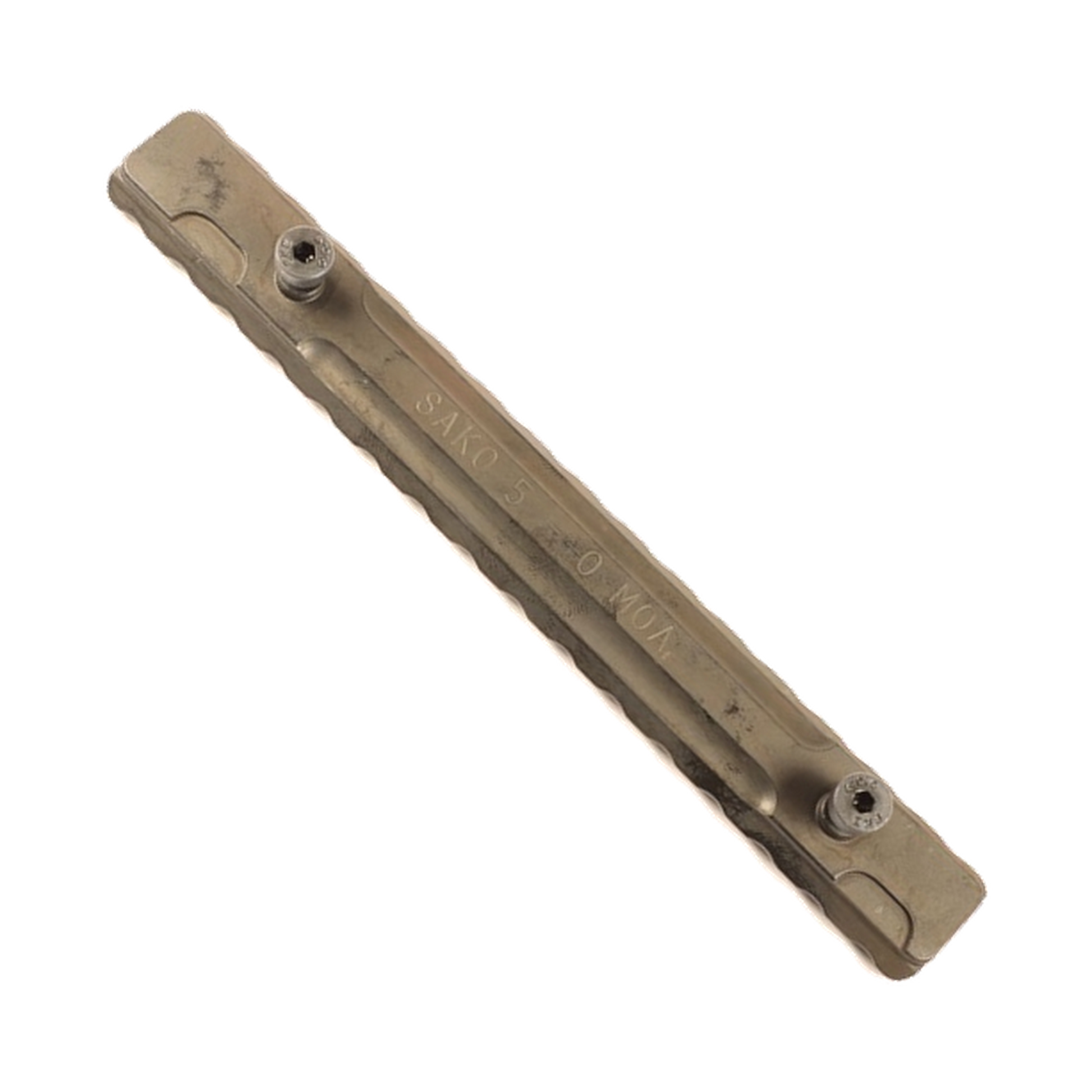

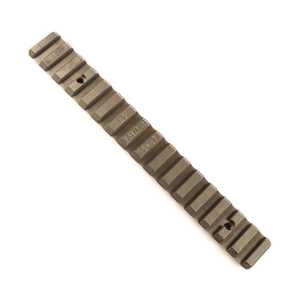

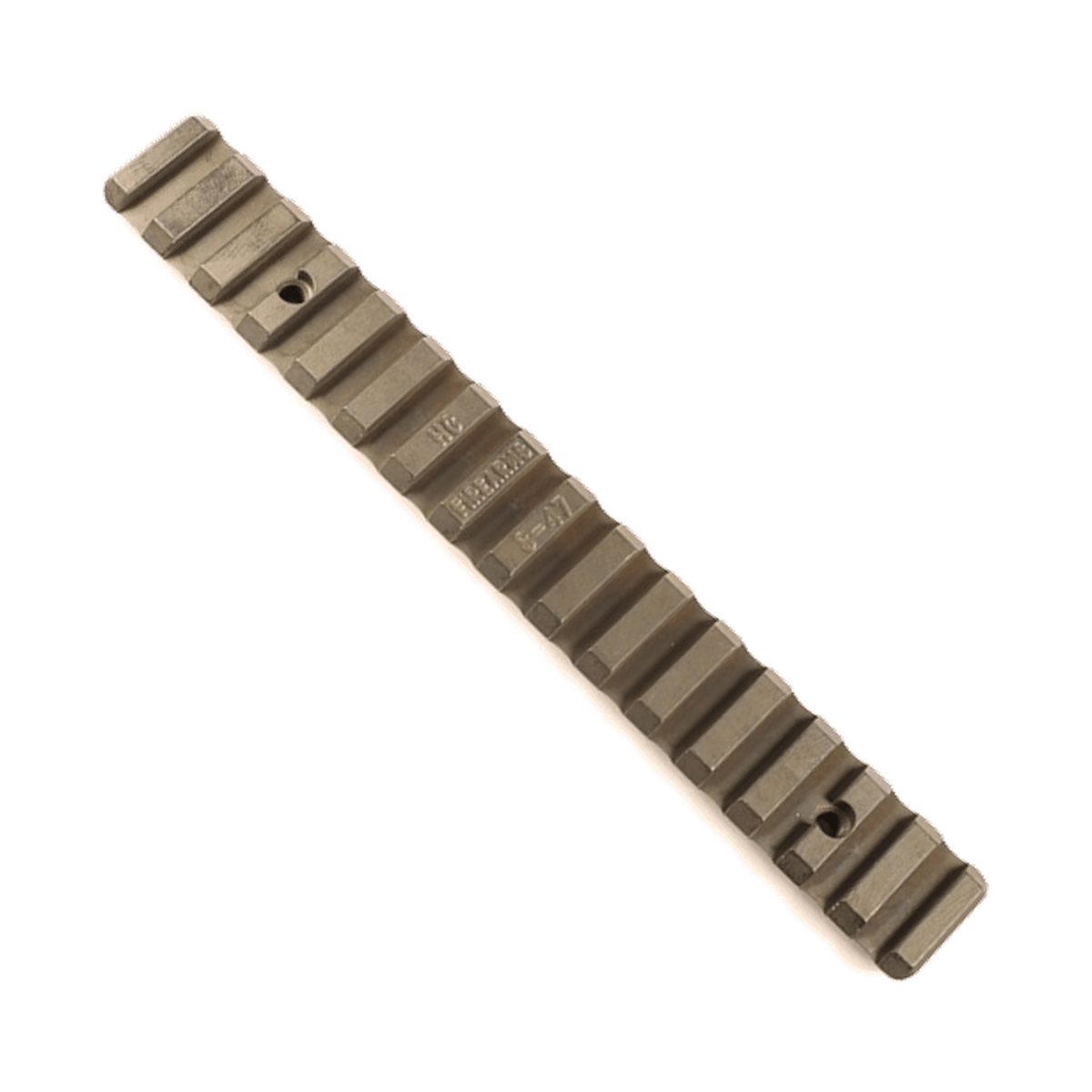

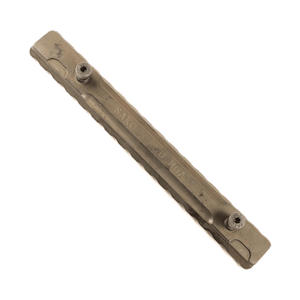

Sako 85 System 5 Picatinny Rail
Sako 85 System 5 Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Sako 85 System 5
May also fit: Sako 75 System 5
Note: Screws not included. This rail requires original Optilock bases. System 5 is not the same option as the shorter Sako systems.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this Picatinny rail. Read more | HG Firearms |
| Material The material affects weight, wear resistance and application. Read more | Steel |
| Surface treatment QPQ is a surface treatment that increases wear and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the rail's inclination and can provide more elevation adjustment in the scope. Read more | 0 MOA, 10 MOA, 20 MOA |
| Screws | MC5 Low Head screws, included |
| A/B/C measurements A/B/C measurements are used to check hole spacing and fit before purchase. Read more | 110.10 / N/A / N/A mm |
| Length | 165 mm |
Which MOA should you choose?
This rail can be selected with several MOA inclinations. Choose 0 MOA for neutral mounting, or choose an inclination if optics and shooting distance require extra adjustment range.
Mounting
Ensure that holes, screw threads, and contact surfaces are clean before mounting. Position the steel rail so that the holes align with the receiver, and tighten the screws evenly according to the manufacturer's recommendations. Only use a small amount of suitable blue threadlocker if you choose to secure the screws.
See guide for mounting Picatinny rail
What's included in the package
1 pc. Picatinny rail and MC5 Low Head screws.
