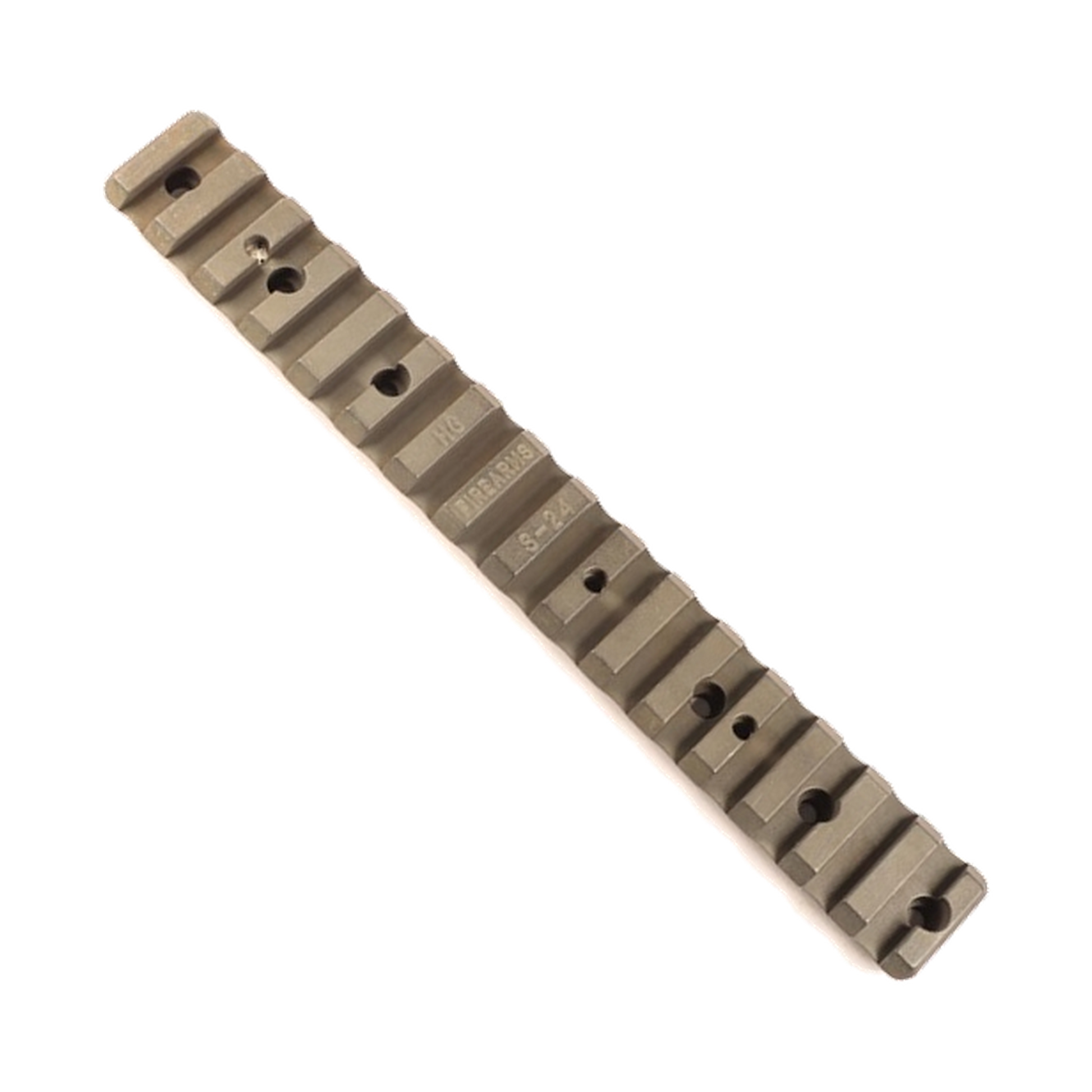

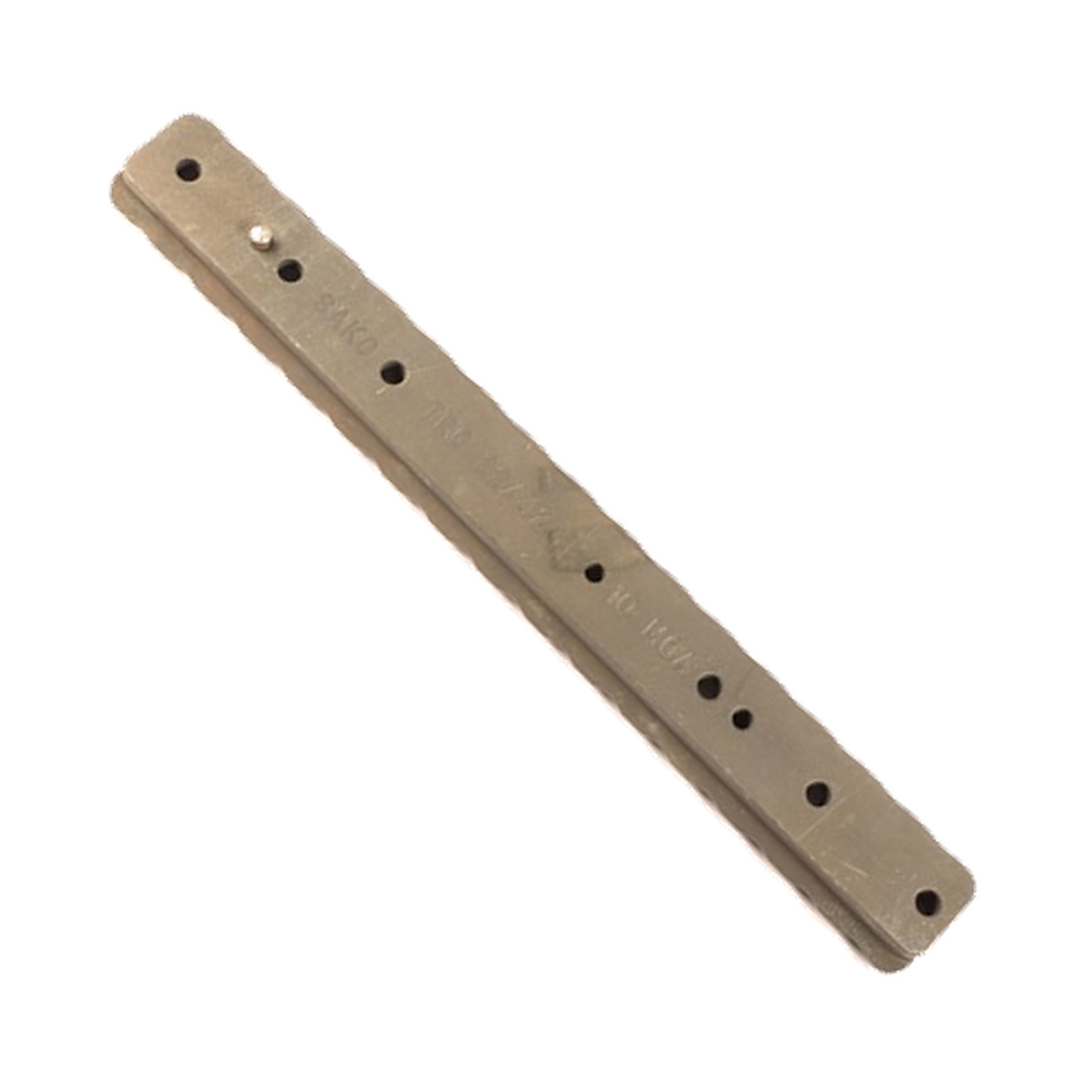

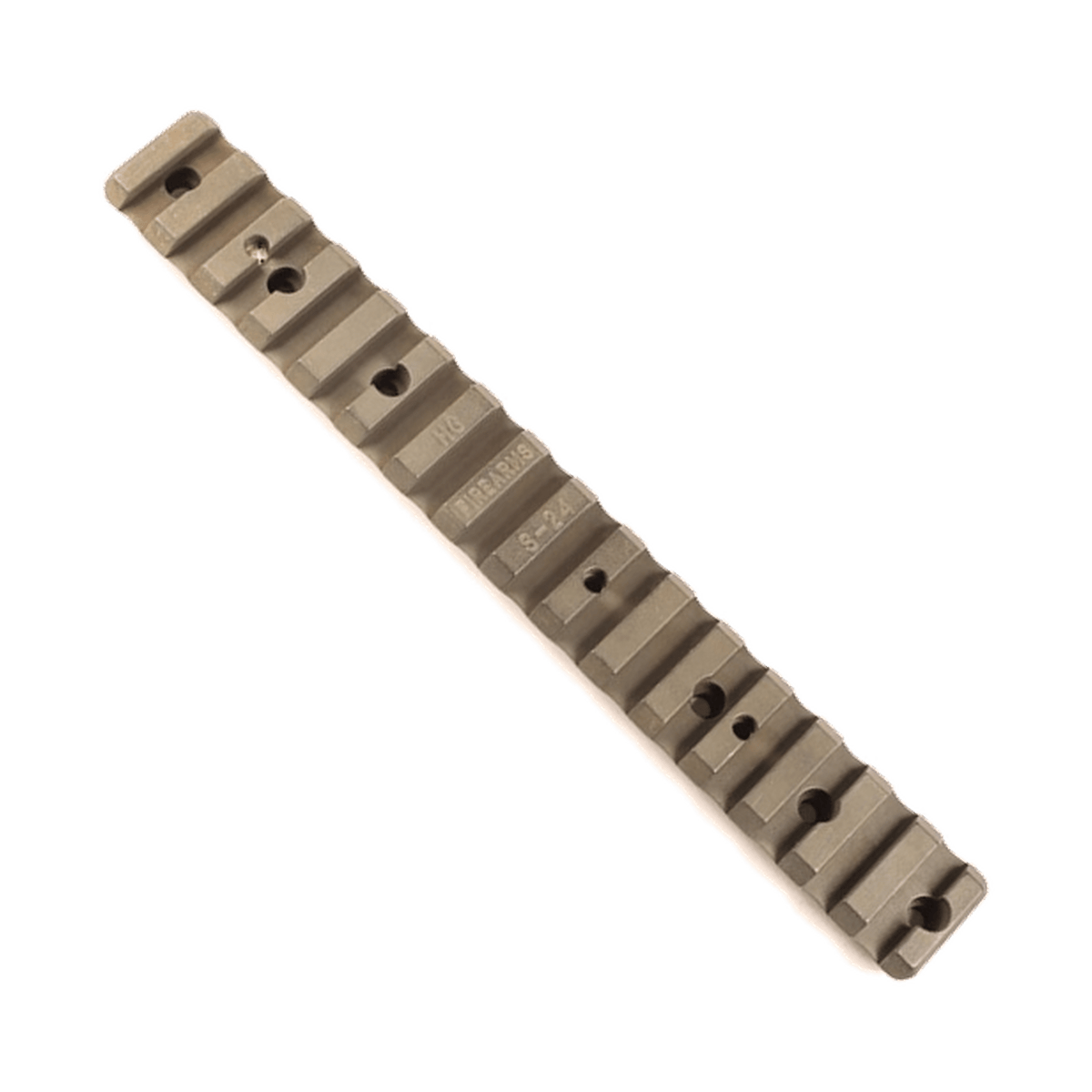

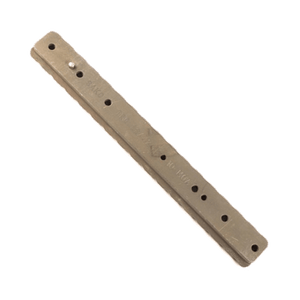

Sako TRG 22 Picatinny Rail
Sako TRG 22 Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Sako TRG 22
May also fit: Sako TRG 42
Note: This rail fits the Sako TRG 22. Manufacturer data indicates the same pin spacing for TRG 22 and TRG 42.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this picatinny rail. Read more | HG Firearms |
| Material The material affects weight, durability, and application. Read more | Steel |
| Surface QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the rail's incline and can provide more elevation adjustment in the scope. Read more | 0 MOA, 10 MOA, 20 MOA, 30 MOA |
| Screws | 6-48 Leupold TORX screws, included |
| A/B/C measurements A/B/C measurements are used to check hole spacing and fit before purchase. Read more | 22.00 / 22.00 / 65.30 + 22.00 mm |
| Length | 165 mm |
Which MOA should you choose?
This rail can be chosen with several MOA inclinations. Choose 0 MOA for neutral mounting, or choose inclination if optics and shooting distance require extra adjustment range.
Mounting
Ensure that holes, screw threads, and contact surfaces are clean before mounting. Position the steel rail so that the holes align with the receiver, and tighten the screws evenly according to the manufacturer's recommendations. Only use a small amount of suitable blue threadlocker if you choose to secure the screws.
See guide for mounting Picatinny rail
What's included in the package
1 pc. Picatinny rail and 6-48 Leupold TORX screws, included.
