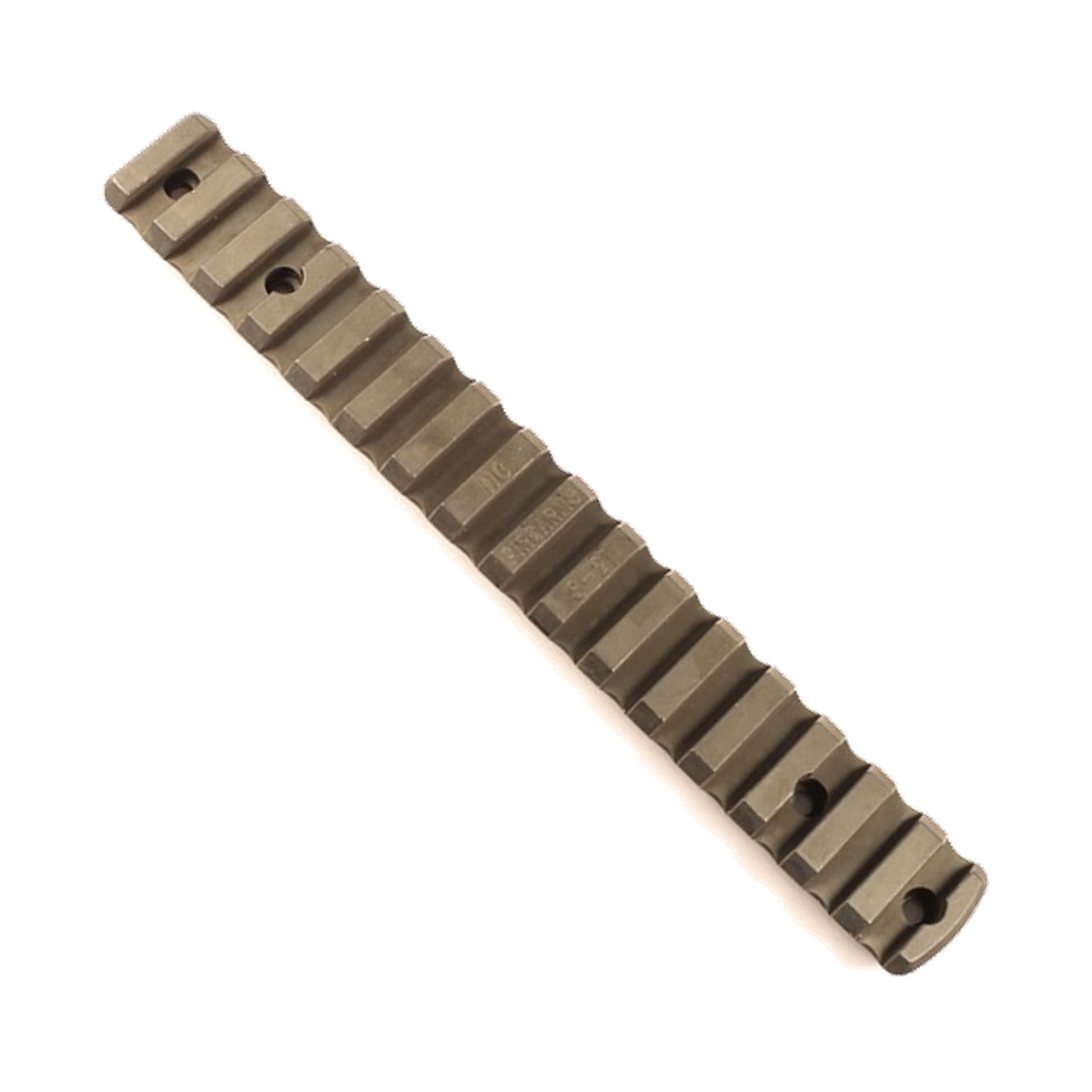

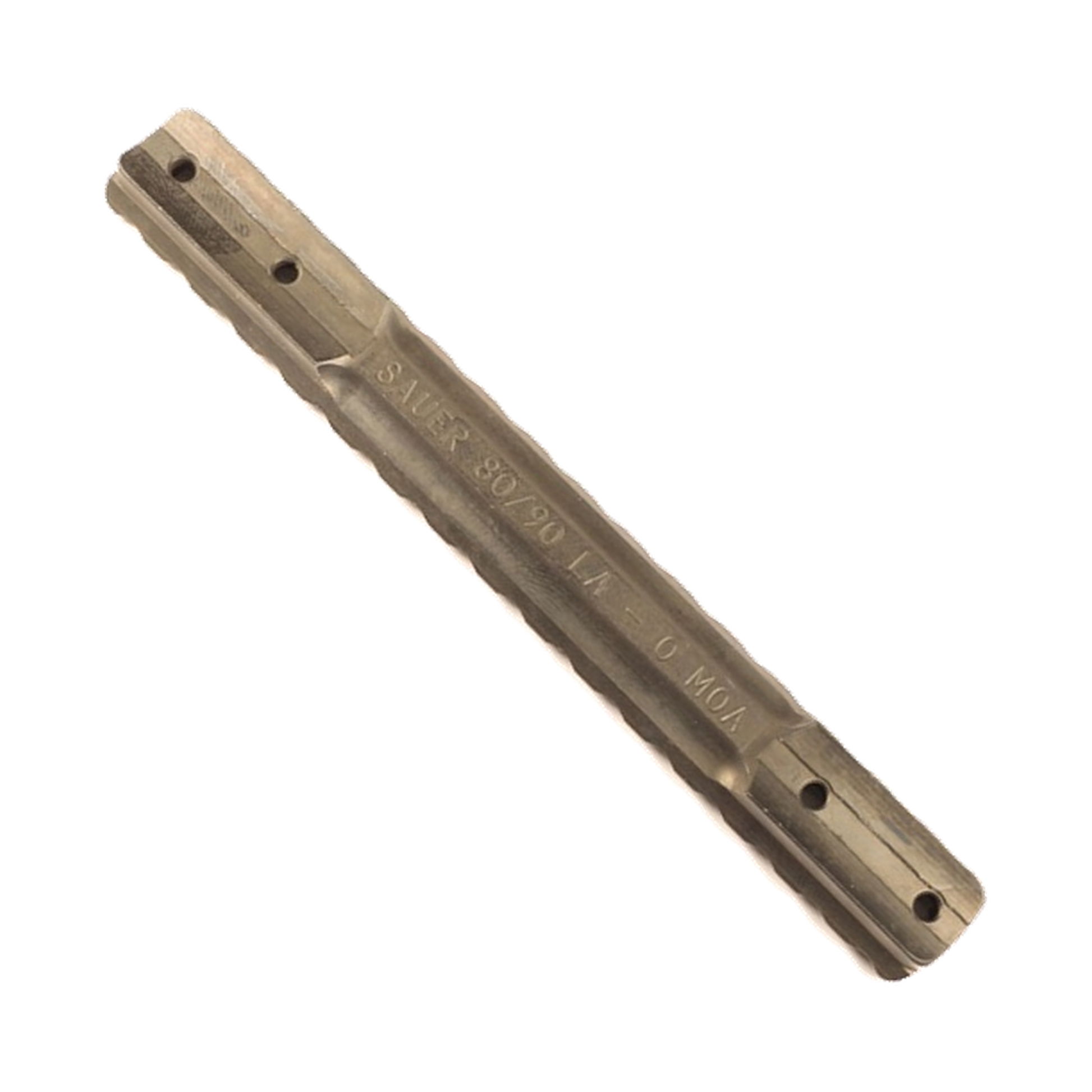

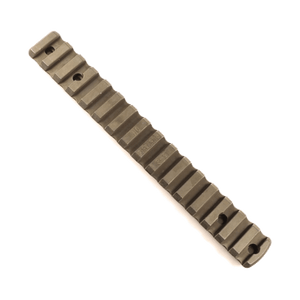

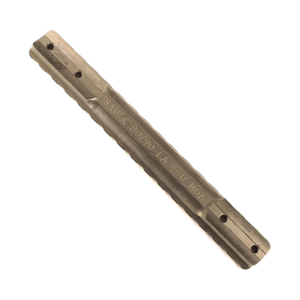

Sauer 80 Long Action Picatinny Rail
Sauer 80 Long Action Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Sauer 80 Long Action
Sauer 90 Long Action
Carl Gustaf 3000 Long Action
Note: This rail fits the Sauer 80 Long Action. The Short Action rail has different dimensions.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this Picatinny rail. Read more | HG Firearms |
| Material The material affects weight, wear resistance, and application. Read more | Steel |
| Surface QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the tilt of the rail and can provide more elevation adjustment in the scope. Read more | 0 MOA, 10 MOA, 20 MOA |
| Screws | 6-48 Leupold TORX screws, included |
| A/B/C dimensions A/B/C dimensions are used to check hole spacing and fit before purchase. Read more | 22.00 / 107.20 / 22.00 mm |
| Length | 165 mm |
Which MOA should you choose?
This rail can be chosen with several MOA inclinations. Choose 0 MOA for neutral mounting, or choose an inclination if optics and shooting distance require extra adjustment range.
Mounting
Ensure that holes, screw threads, and contact surfaces are clean before mounting. Position the rail so that the holes align with the receiver, and tighten the screws evenly according to the manufacturer's recommendations. Use only a small amount of suitable blue threadlocker if you choose to secure the screws.
See guide for mounting Picatinny rail
What's included in the package
1 pc. Picatinny rail and 6-48 Leupold TORX screws, included.
