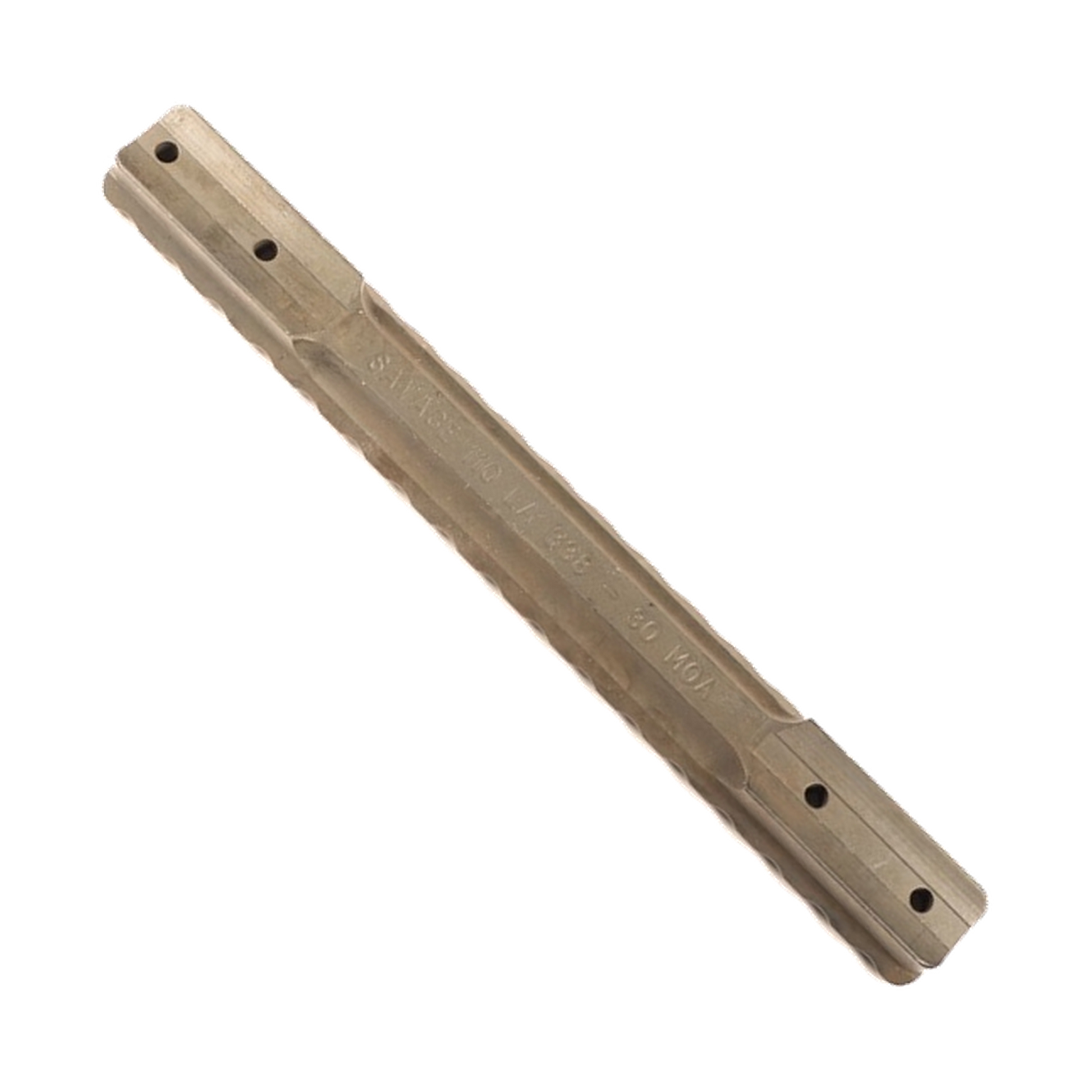

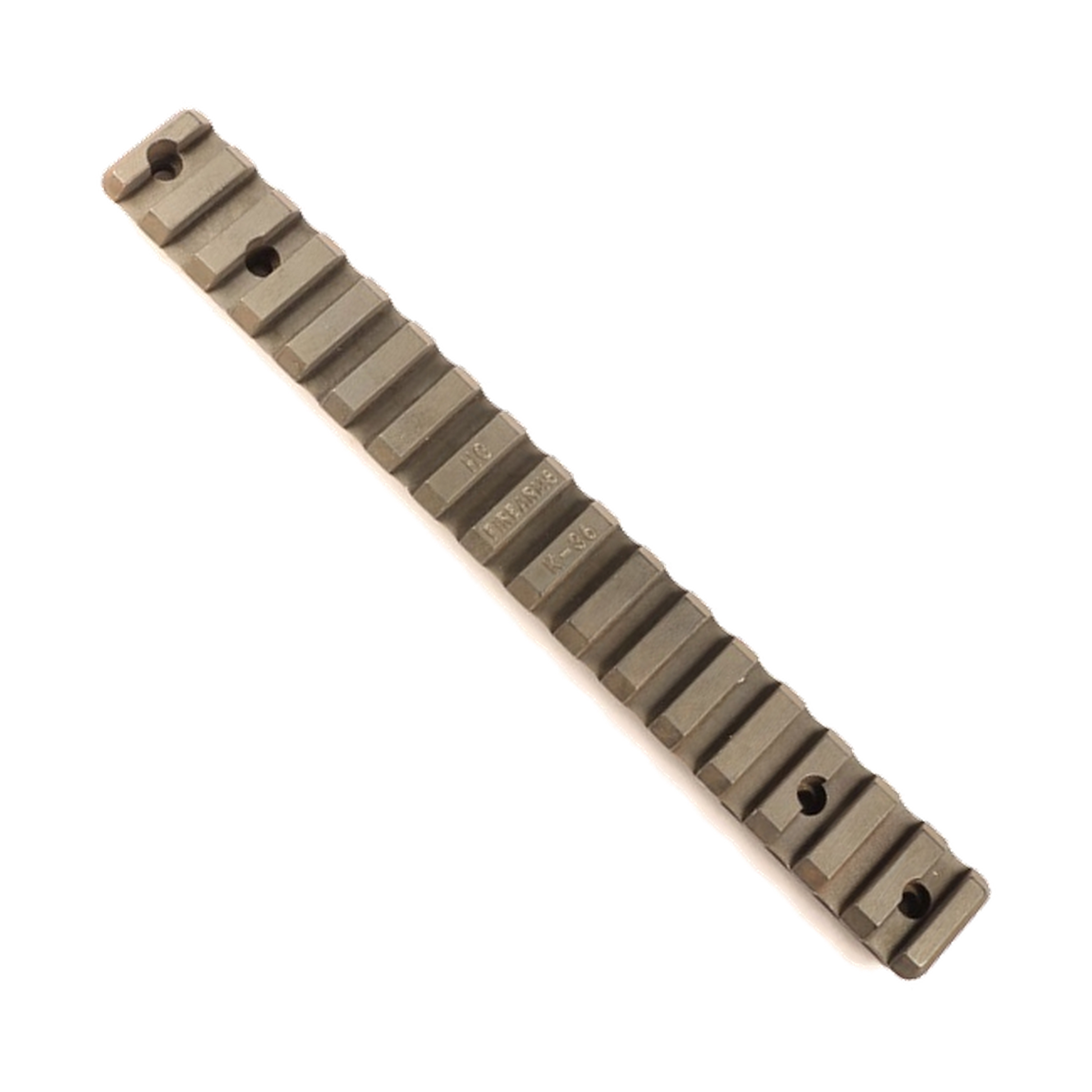

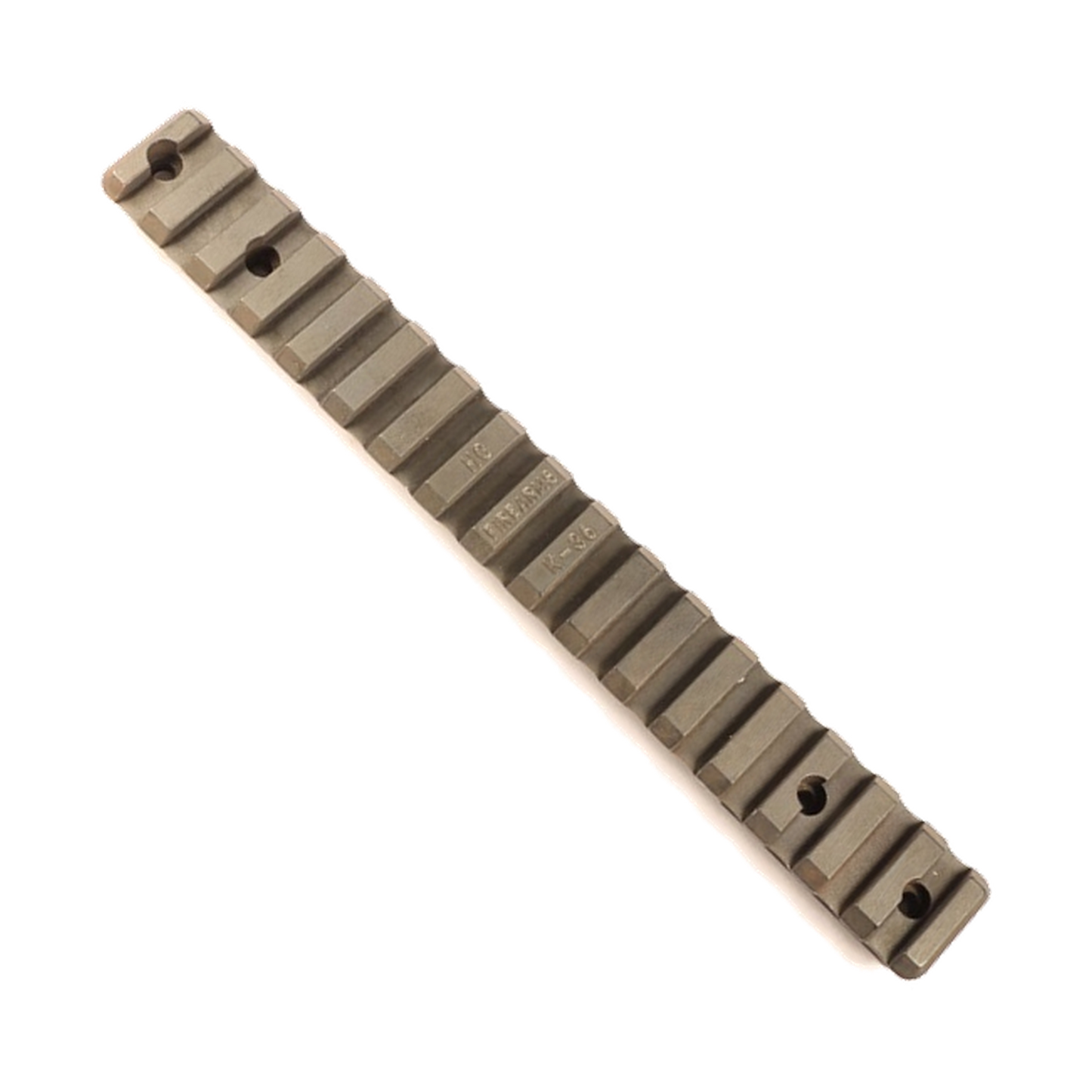

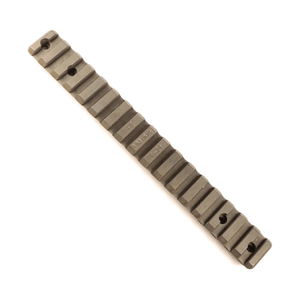

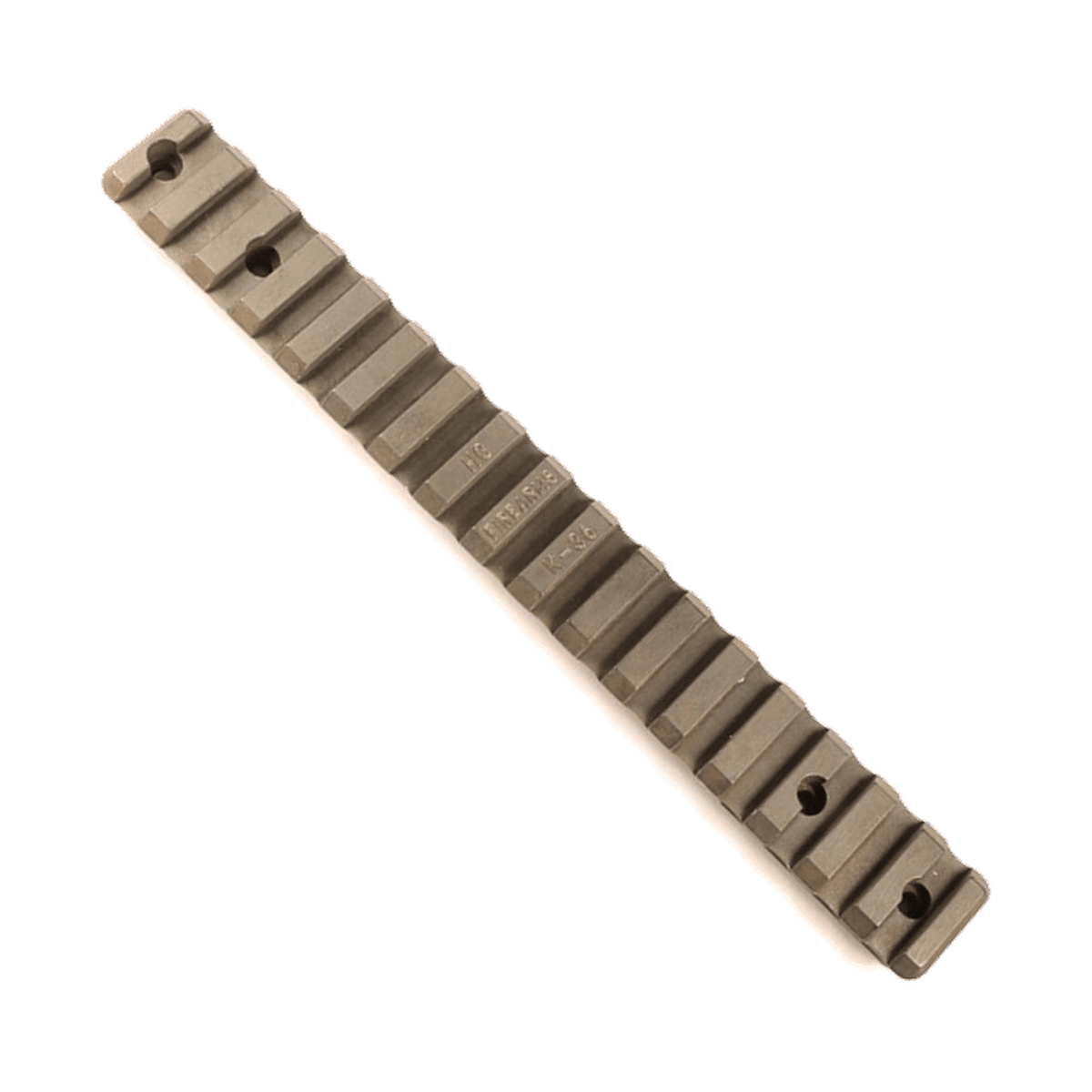

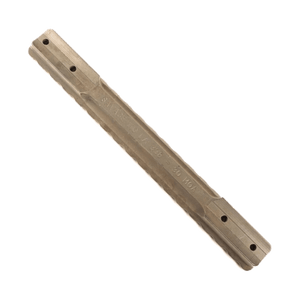

Savage 110 Round Back Long Action Picatinny Rail
Savage 110 Round Back Long Action Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Savage 110 Round Back Long Action
Note: This rail fits Savage 110 Long Action with a round rear bridge. Please check receiver shape and action length before ordering.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this Picatinny rail. Read more | HG Firearms |
| Material The material affects weight, durability, and application. Read more | Steel |
| Surface QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ |
| MOA MOA indicates the rail's inclination and can provide more elevation adjustment in the scope. Read more | 10 MOA, 20 MOA, 30 MOA |
| Screws | 6-48 Leupold TORX screws, included |
| A/B/C dimensions A/B/C dimensions are used to check hole spacing and fit before purchase. Read more | 22.00 / 117.70 / 22.00 mm |
| Length | 175 mm |
Which MOA should you choose?
This rail is available with 10 MOA, 20 MOA, 30 MOA inclination. All variants have built-in inclination, so choose based on optics, mounting height, and shooting distance. If in doubt, you should check the need for MOA inclination before ordering.
Mounting
Ensure that holes, screw threads, and contact surfaces are clean before mounting. Position the steel rail so that the holes align with the receiver, and tighten the screws evenly according to the manufacturer's recommendation. Use only a small amount of suitable blue threadlocker if you choose to secure the screws.
See guide for mounting Picatinny rail
Included in the package
1 pc. Picatinny rail and 6-48 Leupold TORX screws, included.
