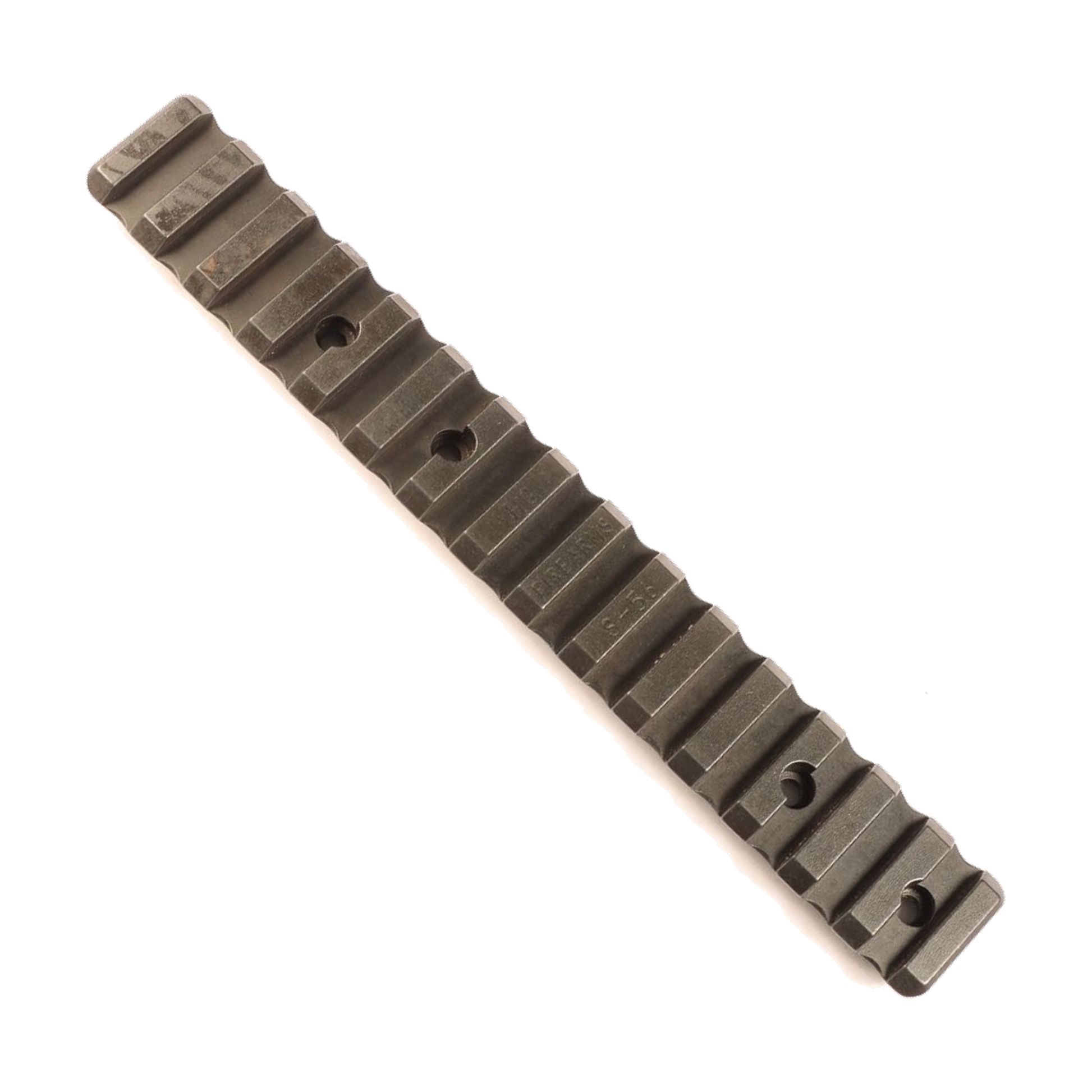

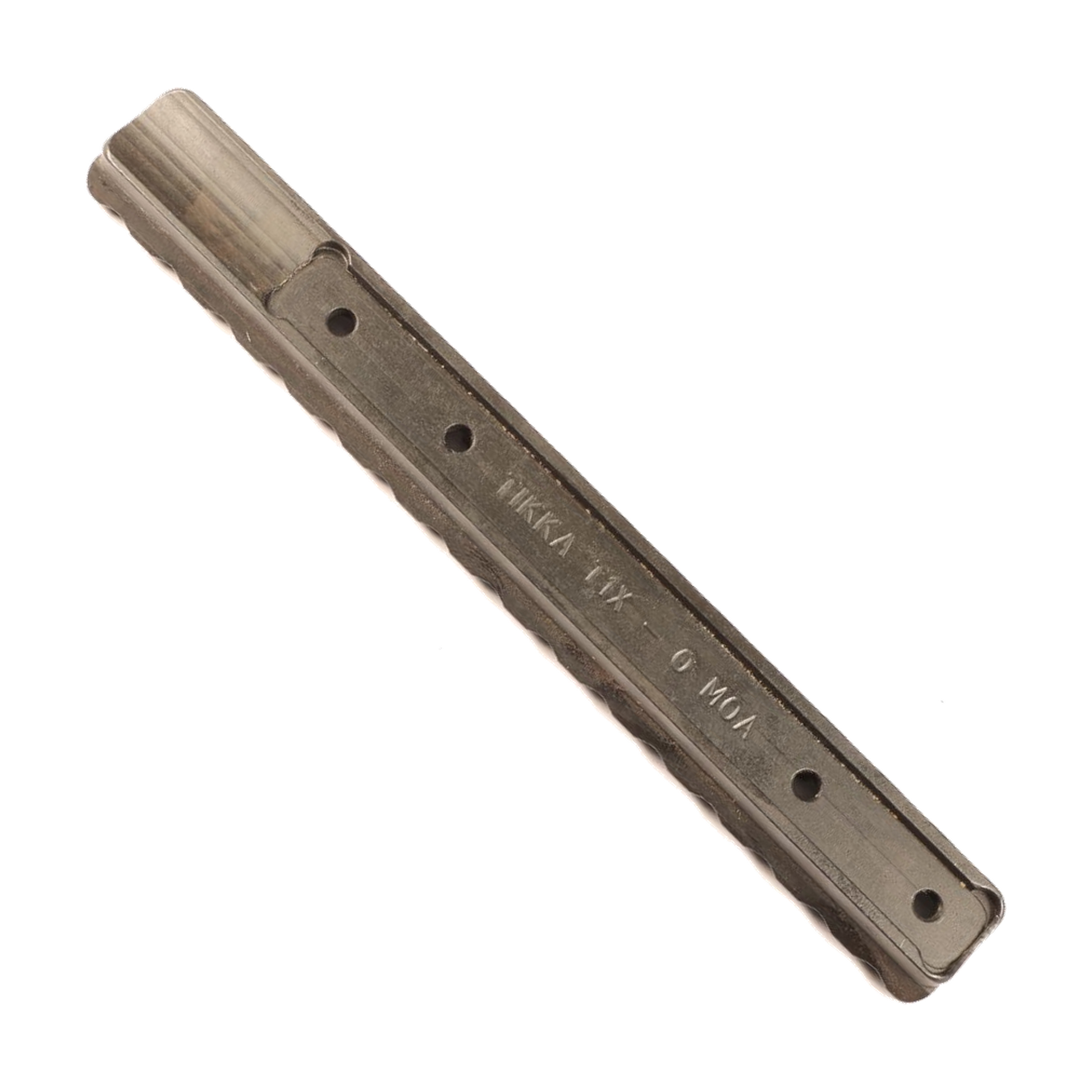

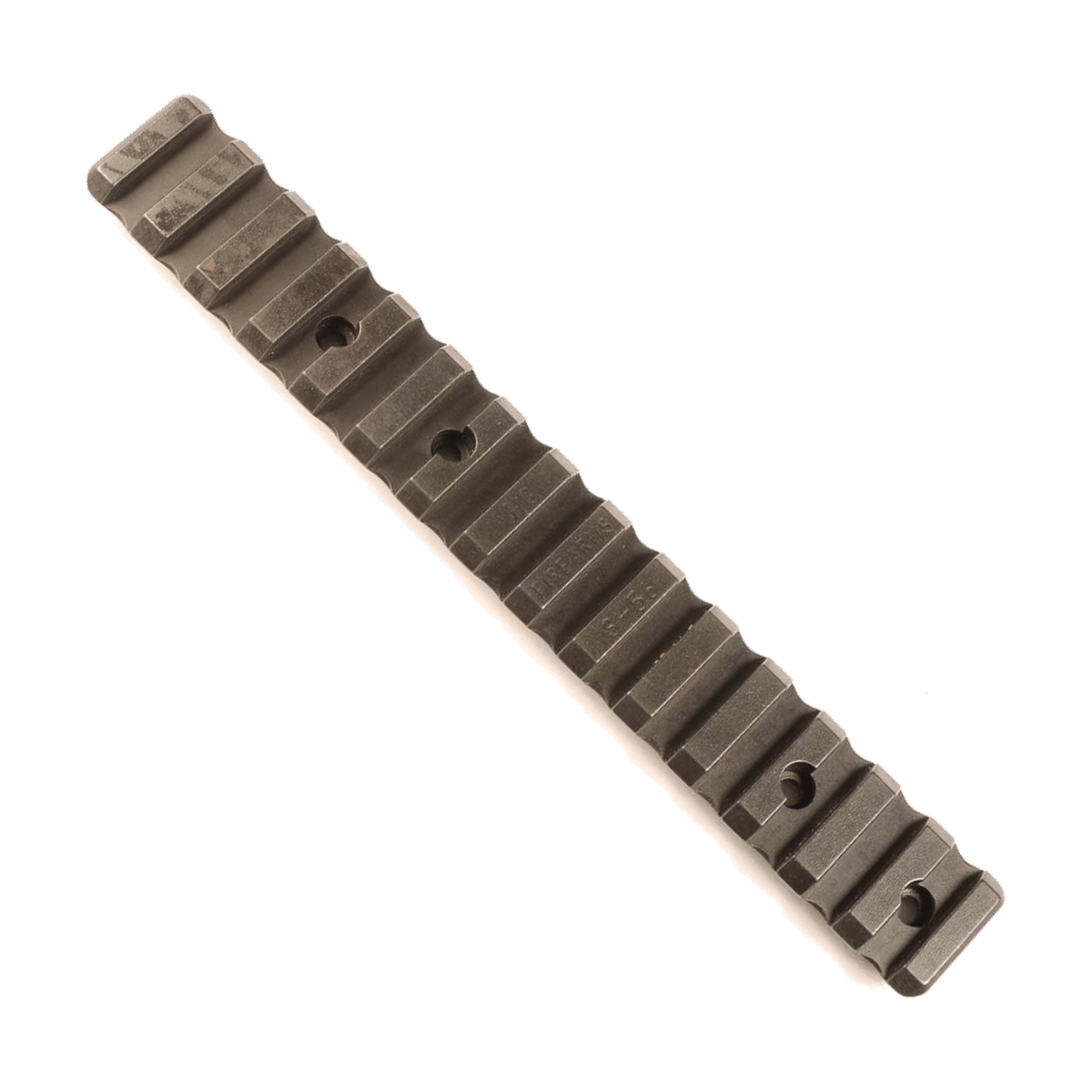

Tikka T1x Extended Picatinny Rail
Tikka T1x Extended Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Tikka T1x
The rail fits both right and left-handed rifles.
Version: Extended / long rail
Specifications:
| Manufacturer HG Firearms is the manufacturer of this Picatinny rail. Read more | HG Firearms |
| Material The material affects weight, wear resistance, and application. Read more | Steel |
| Surface QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ-treated |
| MOA MOA indicates the tilt of the rail and can provide more elevation adjustment in the scope. Read more | 0, 10, 20 and 30 MOA |
| Screws | 6-48 Leupold TORX, included |
| Pins | Prepared for 2 x 3 mm pins |
| A/B/C dimensions A/B/C dimensions are used to check hole spacing and fit before purchase. Read more | 21.81 / 63.86 / 21.81 mm |
| Length | 155 mm |
Which MOA should you choose?
Choose 0 MOA for a neutral mounting. Choose 10, 20, and 30 MOA if you need more elevation adjustment in the scope.
On a Tikka T1x, MOA cant can be relevant for target shooting with .22 LR, as bullet drop requires more elevation adjustment as the distance increases.
Mounting
Ensure that the holes in the receiver, screw threads, and mating surfaces are clean before mounting. Position the Picatinny rail so that the holes align with the holes in the receiver, and tighten the screws according to the manufacturer's recommendation. Optionally, use a small amount of suitable threadlocker and remove any excess oil or threadlocker before use.
See guide for mounting Picatinny rail
This package includes
1 pc. Picatinny rail and 6-48 Leupold TORX screws.
