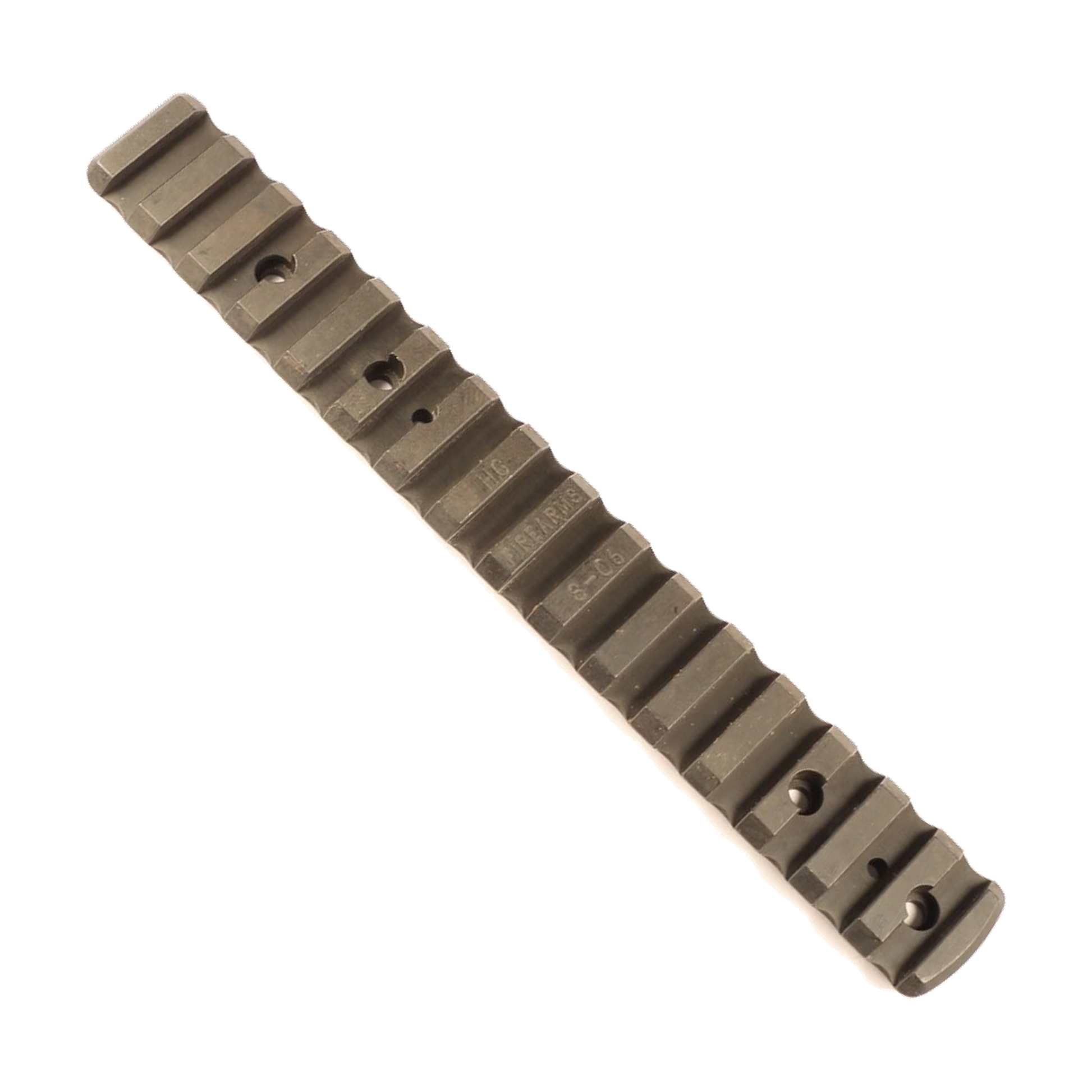

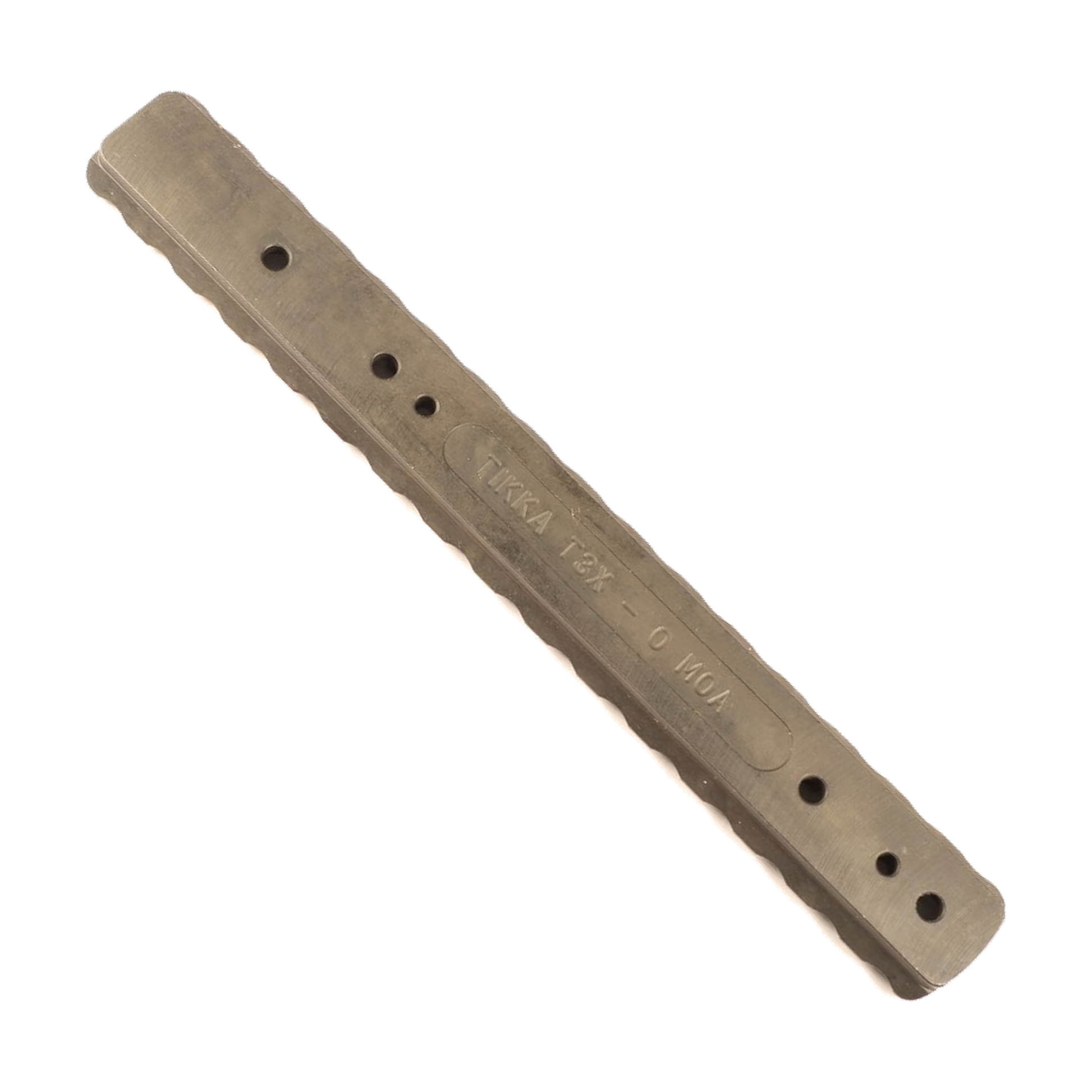

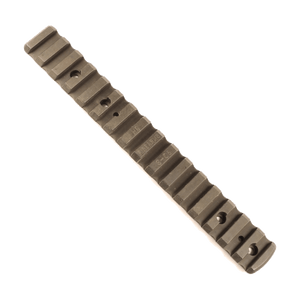

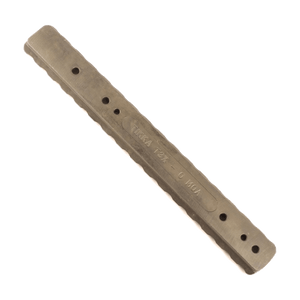

Tikka T3x CTR Picatinny Rail
Tikka T3x CTR Picatinny Rail
Couldn't load pickup availability
This Picatinny rail fits:
Tikka T3x CTR, Tikka T3, Tikka T3x and Tikka T3 CTR
The rail fits both right- and left-handed rifles.
Specifications:
| Manufacturer HG Firearms is the manufacturer of this picatinny rail. Read more | HG Firearms |
| Material The material affects weight, wear resistance, and application. Read more | Steel |
| Surface QPQ is a surface treatment that increases wear resistance and corrosion resistance. Read more | QPQ-treated |
| MOA MOA indicates the rail's incline and can provide more elevation adjustment in the scope. Read more | 0, 10, 20 and 30 MOA |
| Screws | 6-48 Leupold TORX, included |
| Pins | Prepared for 2 x 3 mm pins |
| A/B/C measurements A/B/C measurements are used to check hole spacing and fit before purchase. Read more | 21.85 / 82.30 / 21.85 mm |
| Length | 165 mm |
Which MOA should you choose?
Choose 0 MOA for a neutral mounting. Choose 10, 20, and 30 MOA if you need more elevation adjustment in the scope.
Read more about MOA inclination
Mounting
Ensure that the holes in the receiver, screw threads, and contact surfaces are clean before mounting. Position the Picatinny rail so that the holes align with the holes in the receiver, and tighten the screws according to the manufacturer's recommendations. Optionally, use a small amount of suitable threadlocker and remove any excess oil or threadlocker before use.
See guide for mounting Picatinny rail
What's included in the package
1 Picatinny rail and 6-48 Leupold TORX screws.
